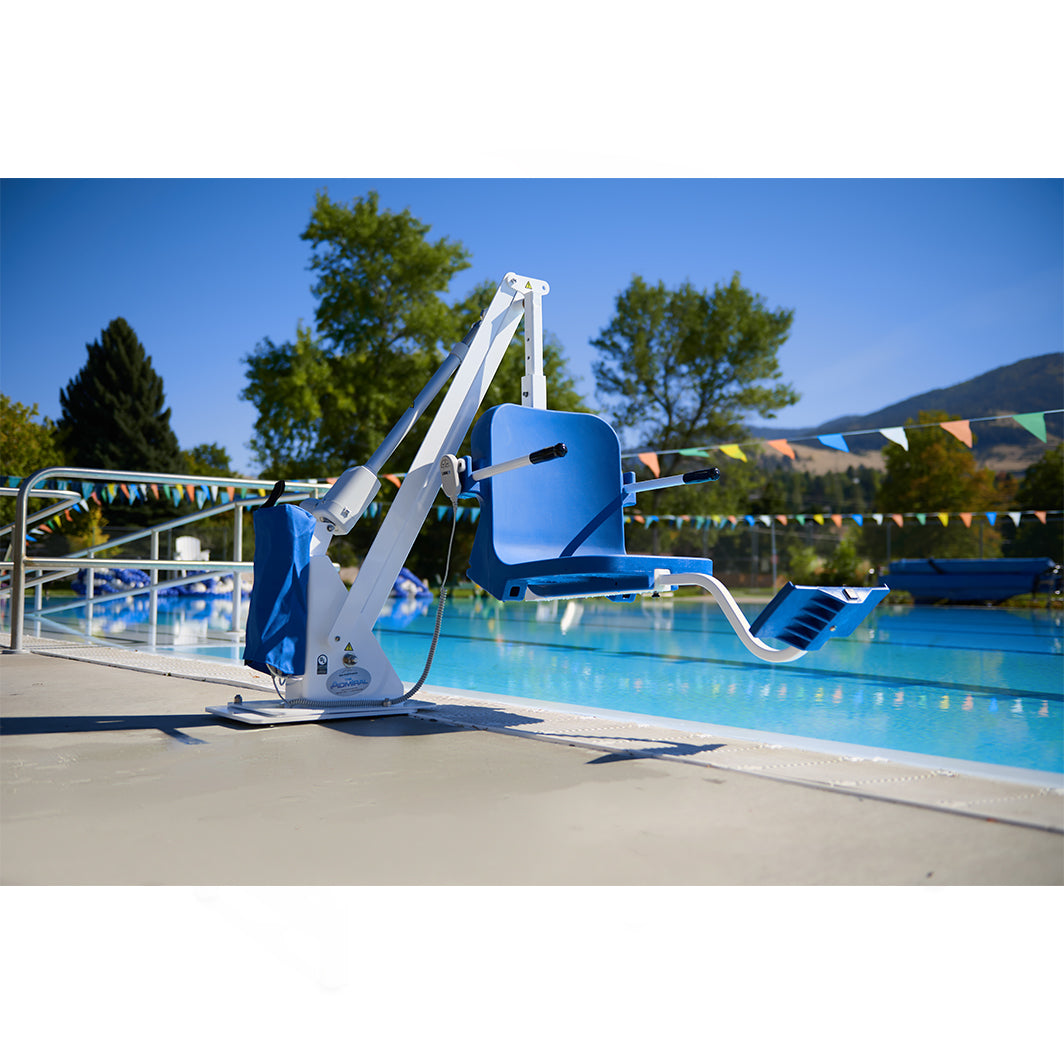

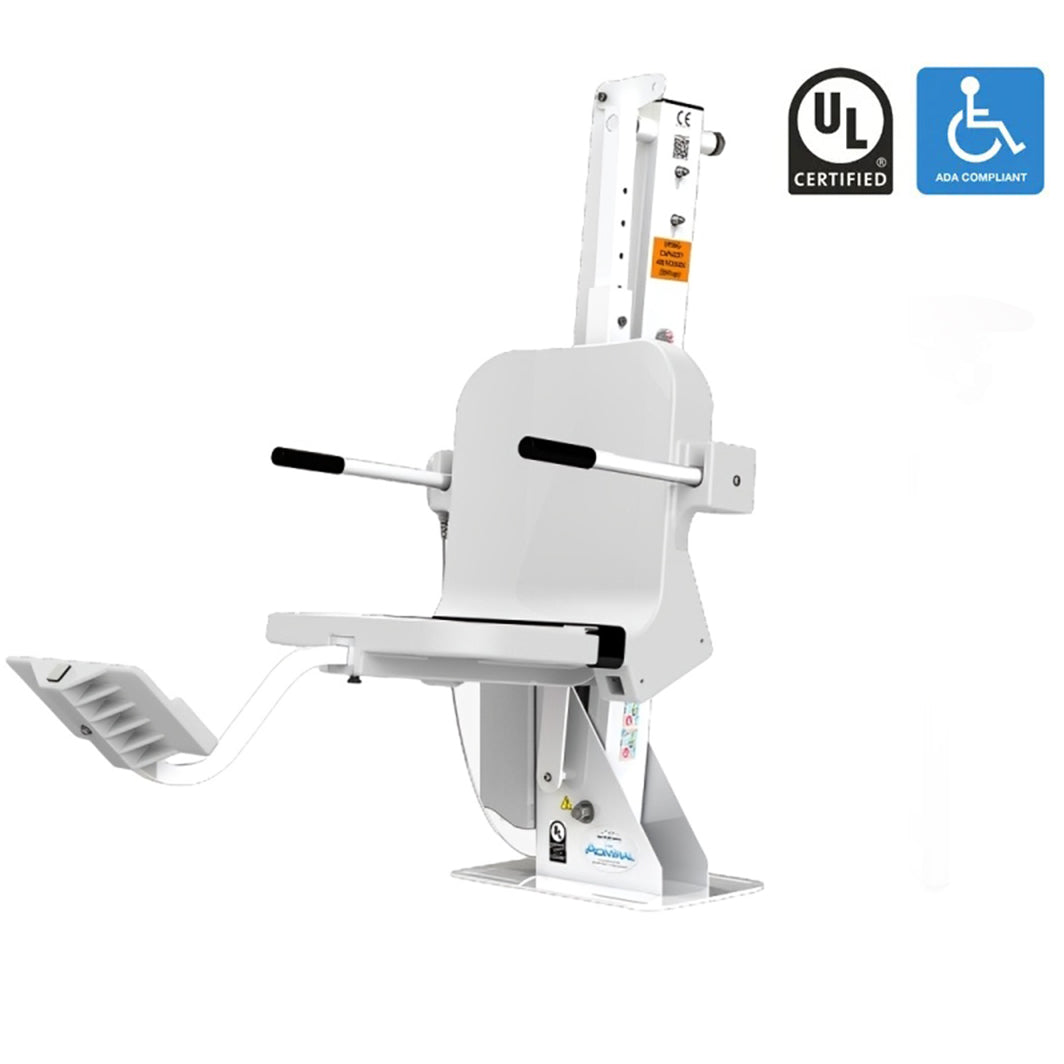

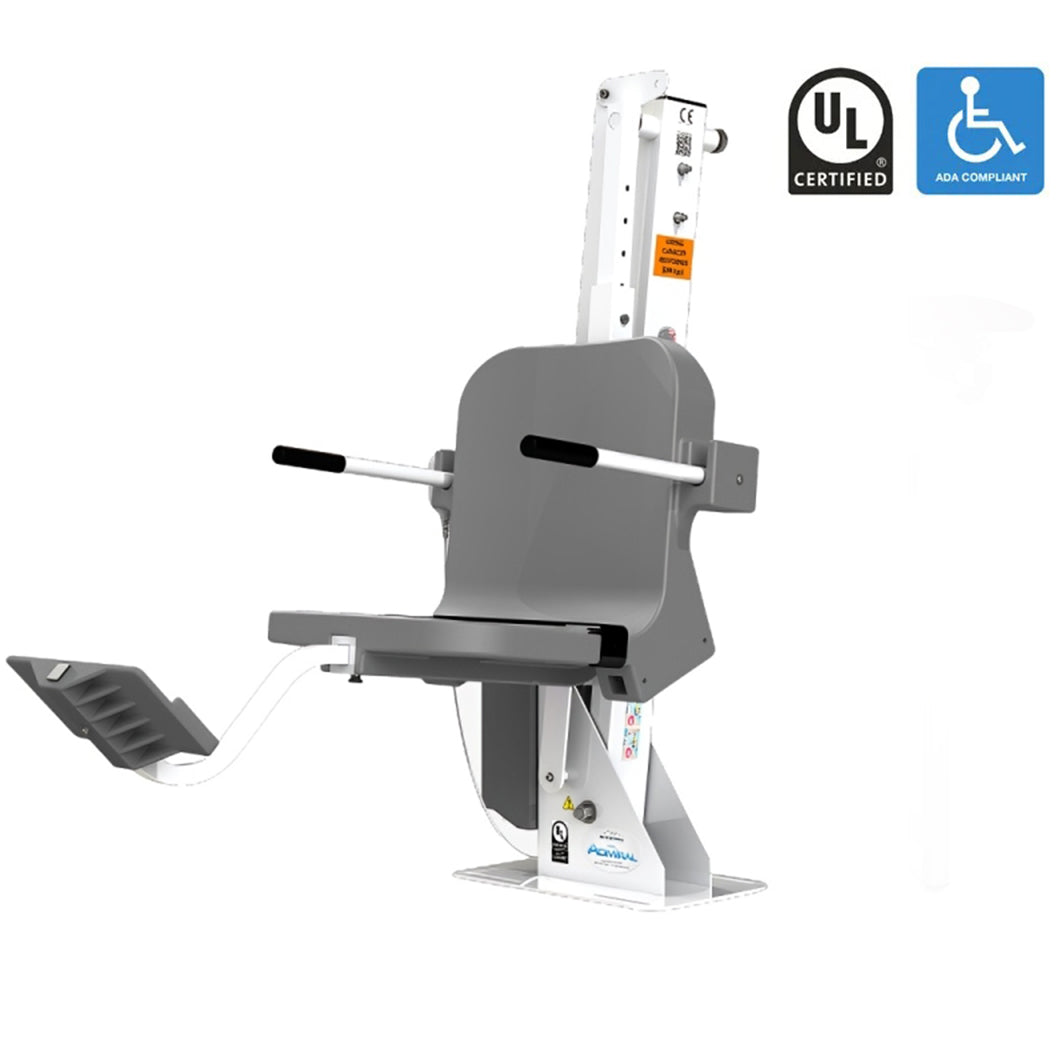

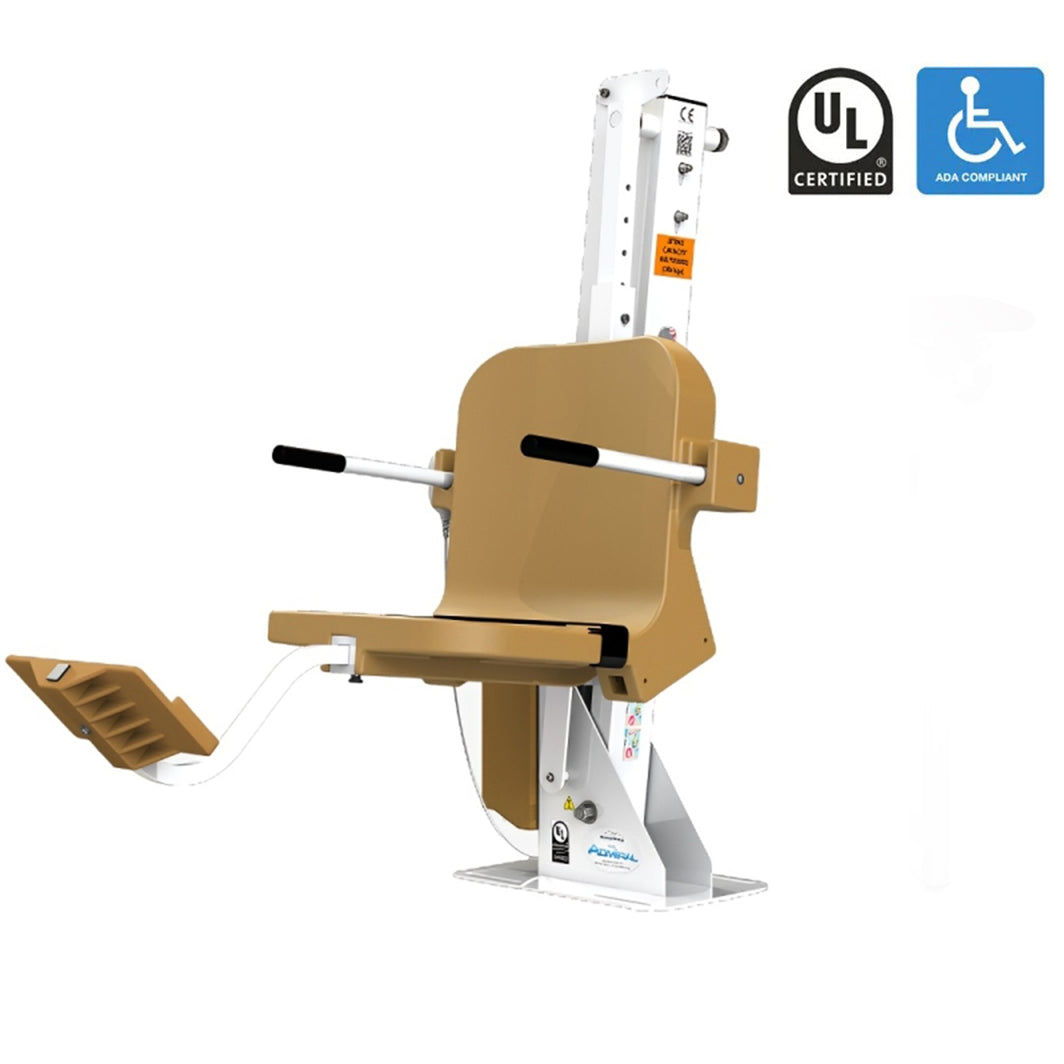

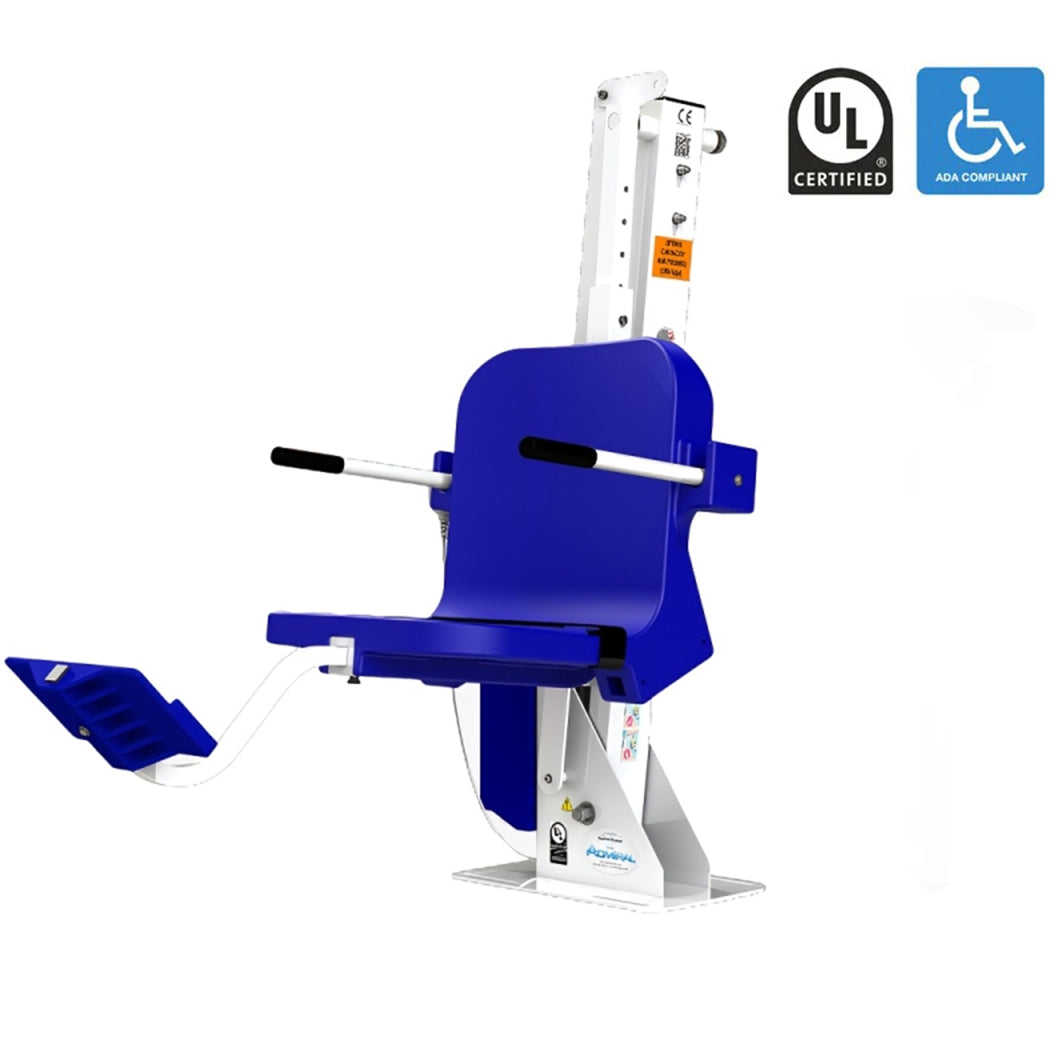

Key Specs:

• ADA compliant & UL safety certified
• Weight capacity: 450 lbs.

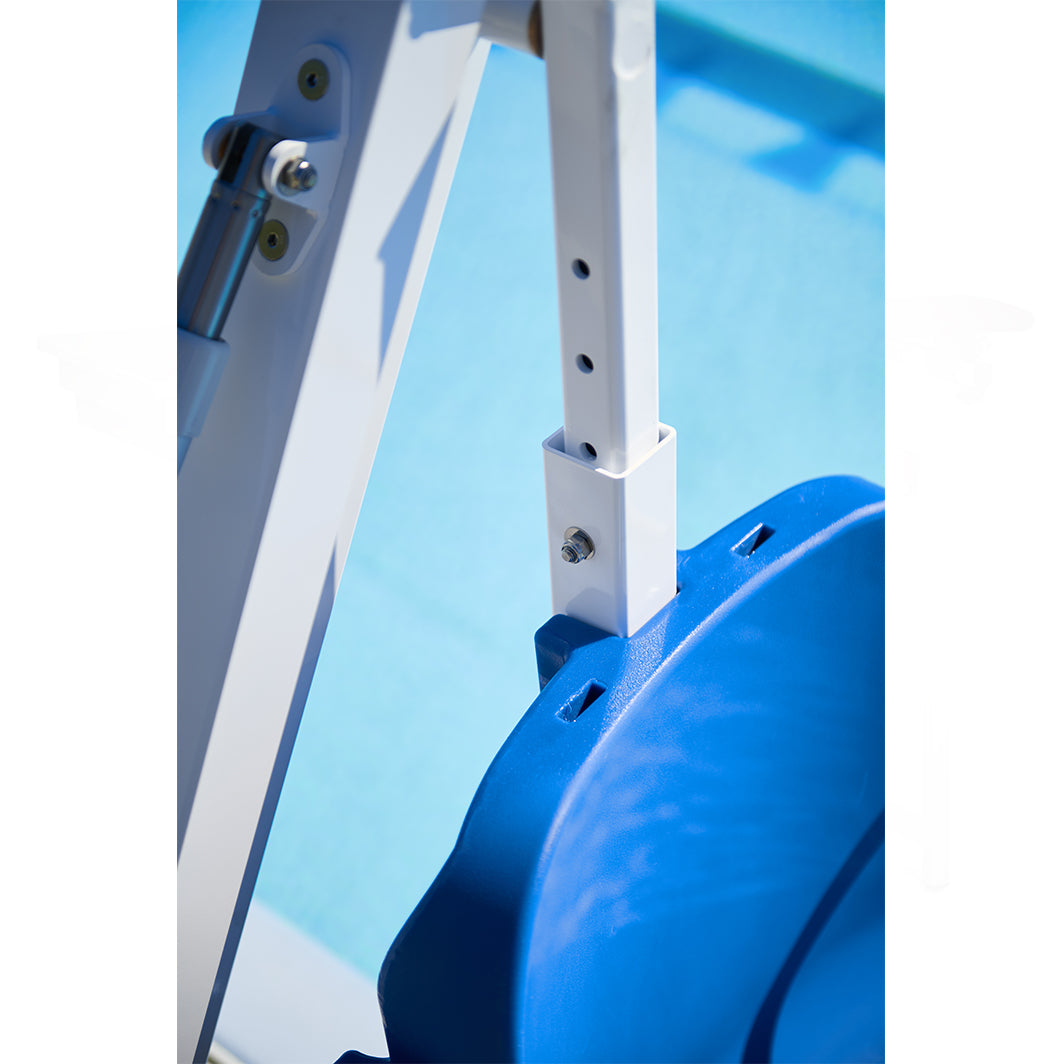

• Adjustable seat height
• Stable non-rotational design
• Field reversible
• Stainless steel construction with powder coat finish

• Made in USA

Features & Benefits:

• Low-Profile: Minimal intrusion into the pool when not in use.
• Adjustable Seat Height: Accommodates individuals using taller wheelchairs.
• Non-Rotating Design: Tailored for in-ground pools and spas. Field reversible design.
• Convenient Controls: Submersible push-button remote control.
• Comfort and Support: Includes a standard leg rest.
• Battery Powered: Rechargeable battery with wall mount charger.
• Convenient Accessories: Quick attach anchor kit and transport cart for easy removal and storage.
• Durable: Stainless steel construction with powder coat finish.


Brand New High Quality Equipment

• ADA Compliant: Yes
• Product weight 130 lbs
• Weight capacity 450 lbs (204 kg)
• Setback range 14.5 to 19
*Note: Anchor Sold Separately


OPTIONAL ACCESSORIES
• Pull-Out Leg Rest Option – often used for additional wall clearances or on spas with benches

Our pull out leg rest is often used to help our lifts clear spa walls or allow the lift’s seat to rest on a spa bench. The adjustability of the pull out leg rest allows you to support your legs as little or as much as you need to. By pulling the leg rest all the way out, it supports your entire leg or you can pull it out just far enough to support your upper legs; the choice is up to you. Now the leg rest option is available in colors to match your seat.

• Anchors
All kits include four inserts, a jig plate to hold them all at the proper distance, a bonding lug, all hardware to secure the inserts to the jig plate, and hardware to secure the lift to the anchors when installed.

NOTE: These kits may be used for many older models like the Pathfinder, Pro Pool Lift and Ranger. Check with our service department before ordering to make sure the bolt pattern matches your lift.

- The Standard Concrete Anchor Kit is for your typical concrete pool deck applications. The kit includes 4ea, 4-in long, machined, stainless steel threaded inserts, a jig plate to keep the anchors at the proper distance, a bonding lug, mounting hardware, and plastic caps to place in the top of the inserts when the lift is removed from poolside.

- The Paver Anchor Kit is typically used for paver applications where pavers are on top of a concrete footing. The longer machined threaded inserts stand proud of the footing at the height you determine based on your paver thickness. Pavers can then be cut to fit around the inserts. Kit includes 4ea, 8-in long, machined, stainless steel threaded inserts, a jig plate, bonding lug, mounting hardware, and plastic caps to place in the top of the inserts when the lift is removed from poolside.

- The Wood Deck Anchor Kit was designed to allow the Ranger 2 and Admiral Lifts to be mounted to a wood deck. This item is powder coated stainless with threaded nuts welded in place on the back side of the plate to receive the lift mounting hardware. Comes with a bonding lug.

- The Standard Concrete Anchor Kit with Quick Attach Knobs includes all the features of the F-04CAJP anchor kit but instead of having mounting bolts that require a wrench to secure the lift to the anchor, this comes with Tri-Star knobs that allow for quick removal and installation of the lift without the need for tools.

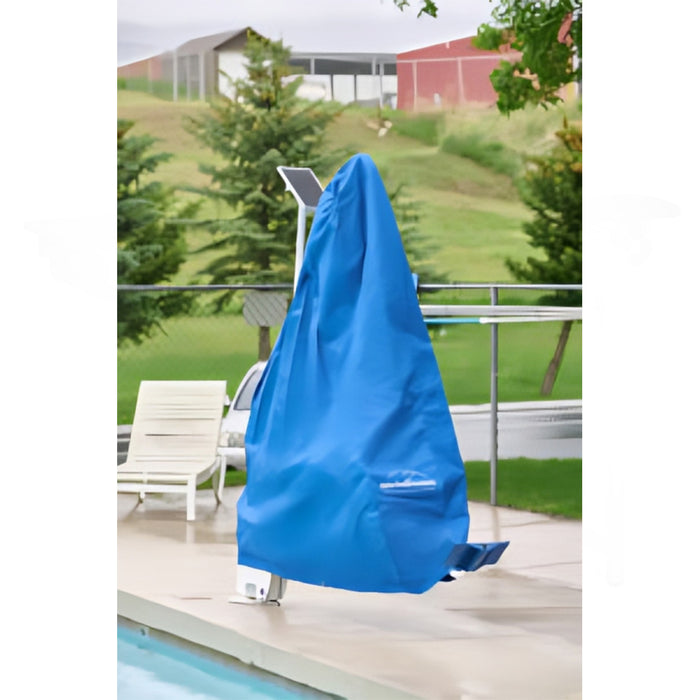

• Cover Options – protects your investment from the elements
- The fabric used for all of Aqua Creek’s covers is a heavyweight, polyester fabric. Polyester fabric is durable and breathable. It is soft, dries fast and has good elastic and high waterproof characteristics.

- Our standard covers come with a PVC coating, are pigment dyed, and are available in Blue, Tan and Gray colors. Premium covers provide a more flexible Polyurethane coating and are solution dyed to help prevent fading. Our premium covers are only available in blue.
Note: Covers may or may not have a logo depending on supplier availability.

• Chest Strap Option – for additional torso support
- Upper body chest strap
- 2-in wide polyester webbing
- Moisture and UV-resistant polyester hook & loop fasteners

- The easy to use and durable chest strap offers additional upper body support and security when using the pool lift. With a safety loop for right hand release, this velcro chest strap is secure and easy to use when entering and exiting the pool lift seat. Chest straps can be added to any current Aqua Creek pool lift with just a few easy steps.

• Cycle Attachment Option – turn your lift into a personal aquatic fitness bike
- Easily mounts under your lifts seat
- Adjustable to allow for short or tall users
- All powder coated stainless steel construction
- Corrosion resistant pedals and gears
- Adjustable tension
- Limited one (1) year warranty
- Made in USA
*Actual product may vary from photos*

The Aqua Creek Cycle Attachment quickly converts your lift into an aqua therapy bike. Simply slide the Cycle Attachment into place, lower yourself down into the water and enjoy an invigorating workout without ever leaving your lift! The tension knob allows you to easily increase or decrease resistance to customize your workout.

• Headrest Option – for comfortable head support
- Add comfort and support by adding an Aqua Creek head rest to your lift. This easy to install option features a durable stainless steel frame with a thick closed-cell foam wrapped in a durable white vinyl cover. The head rest fits both our 18-inch and 22-inch wide chairs and are easily installed or removed if necessary.

• Transport Carts
- All steel cart with durable painted finish (color may vary)
- 8-in diameter wheels with rubber tread
- 1-in wide polyester strap to secure the lift to the cart
- Limited one (1) year warranty

Save your back and prevent injuries when moving your pool lift to storage. Our Transport carts allow you to remove the pool lift from the pool when not needed easily and without risking injury. Simple design and operation allows the lift to easily be removed and stored on the cart out of the way. Having a transport cart also helps keep the lift from getting damaged.

• Solar Charger Option – to conserve energy
- Maintain your batteries charge with clean energy from the sun!
- 12v /10 watt solar panel
- Auto shut off when battery is fully charged
- Extends the life of your battery with constant low voltage charge*
- One year warranty
- Made in USA

Pro Tip: Usage, temperature, and sunlight will affect the solar charger’s ability to keep up with a full charge. Even with the use of a solar charger, we recommend removing your battery and putting it onto your wall charger once a month to extend your battery’s life.
