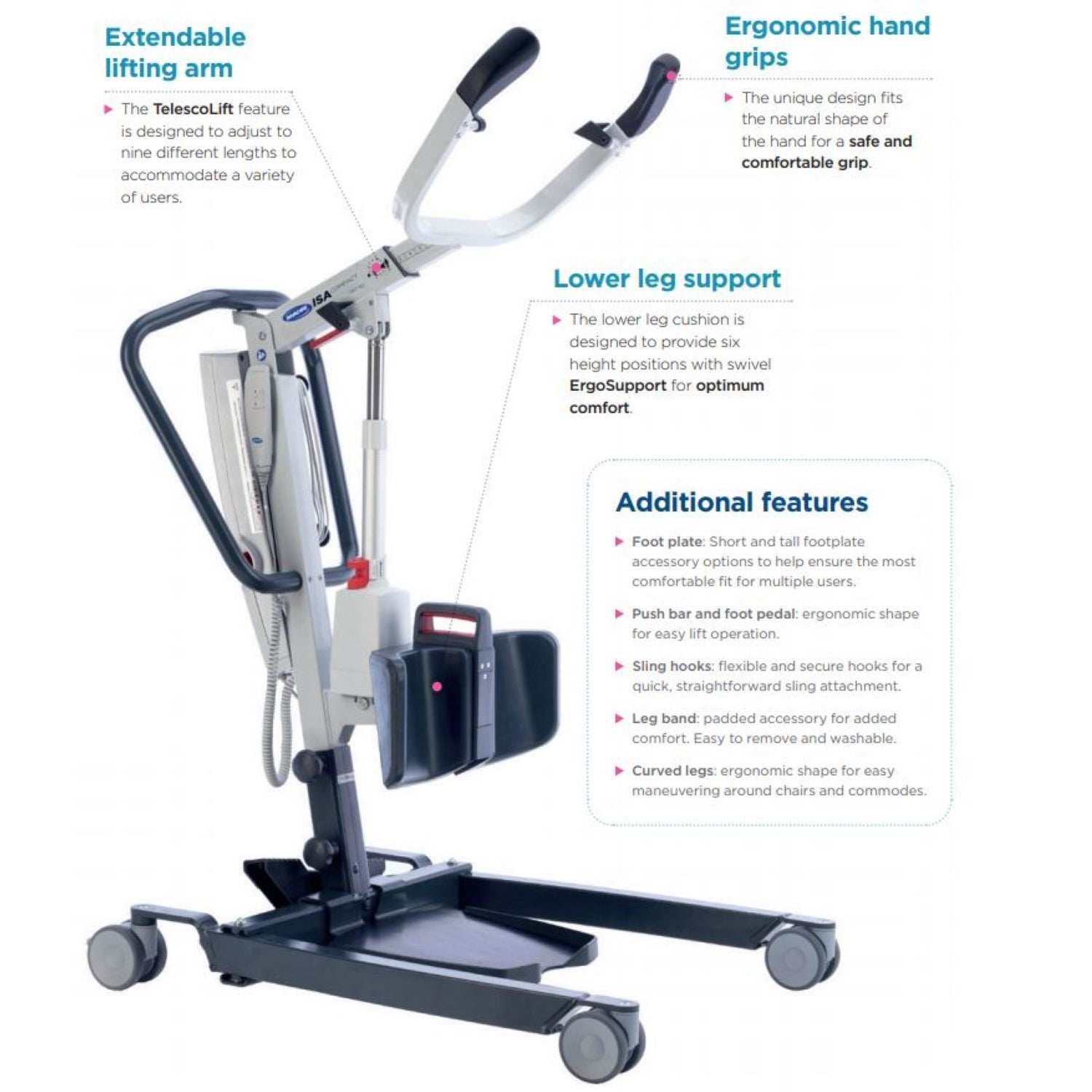

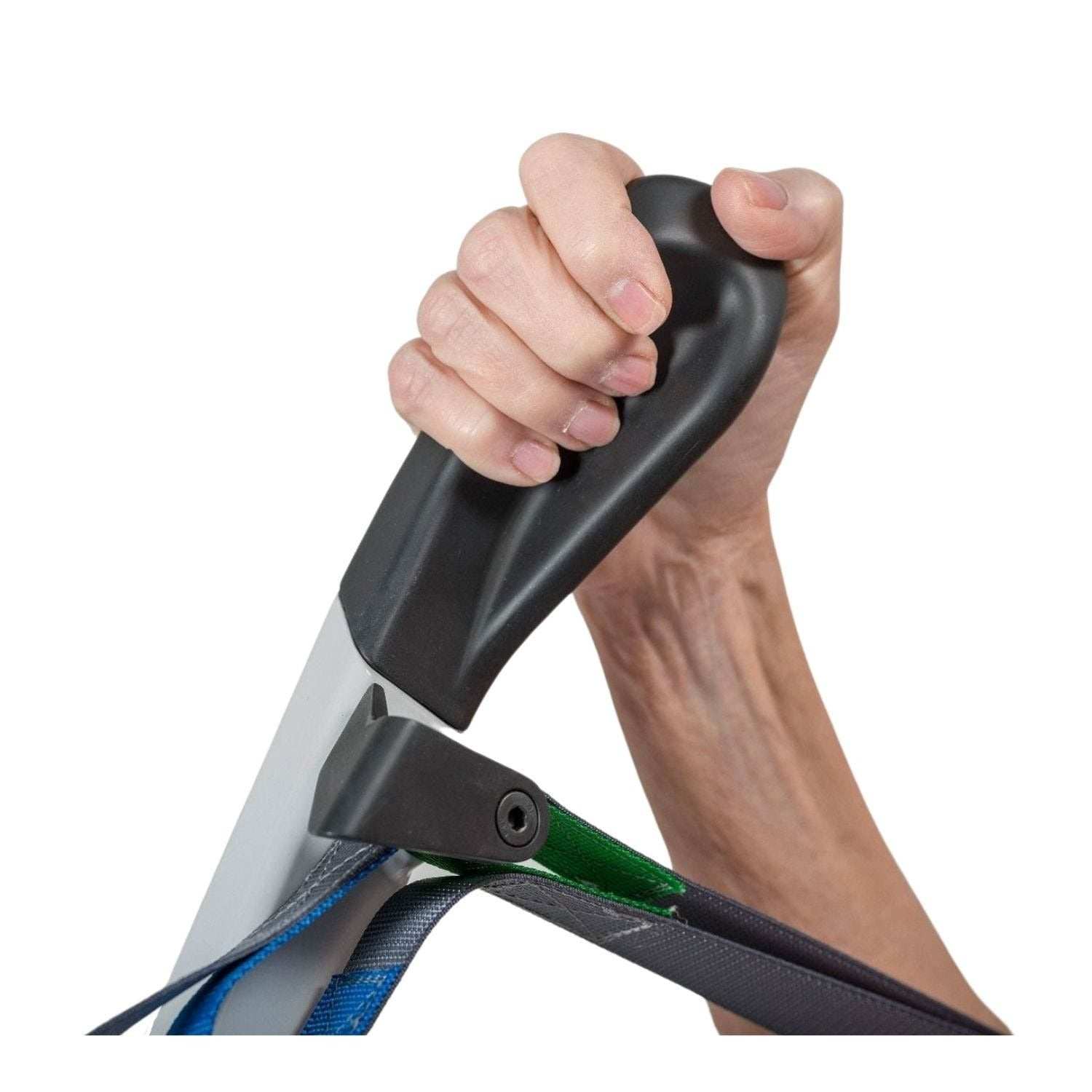

Ergonomic hand grips align with the shoulders and fit the natural shape of the hand for a safe, comfortable hold

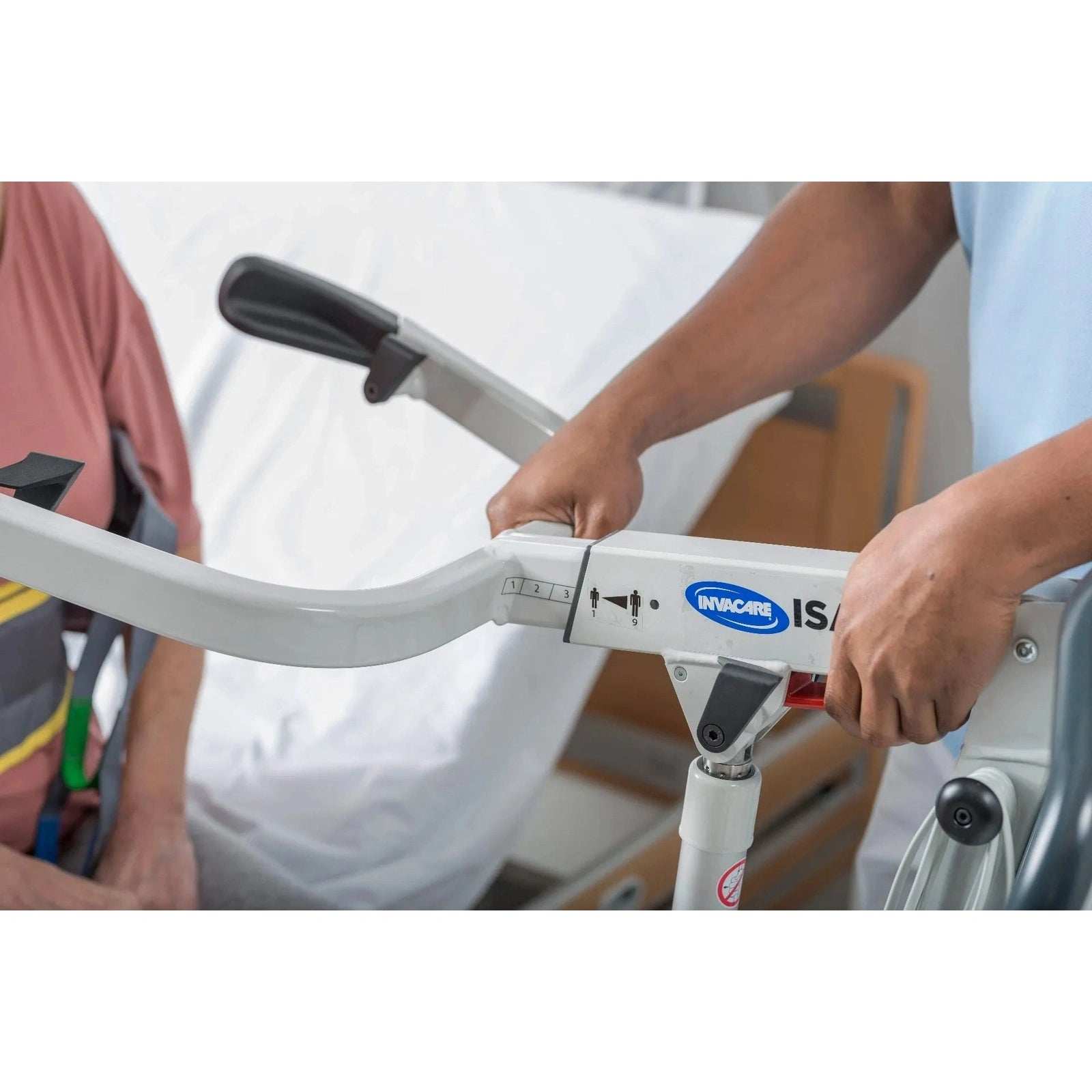

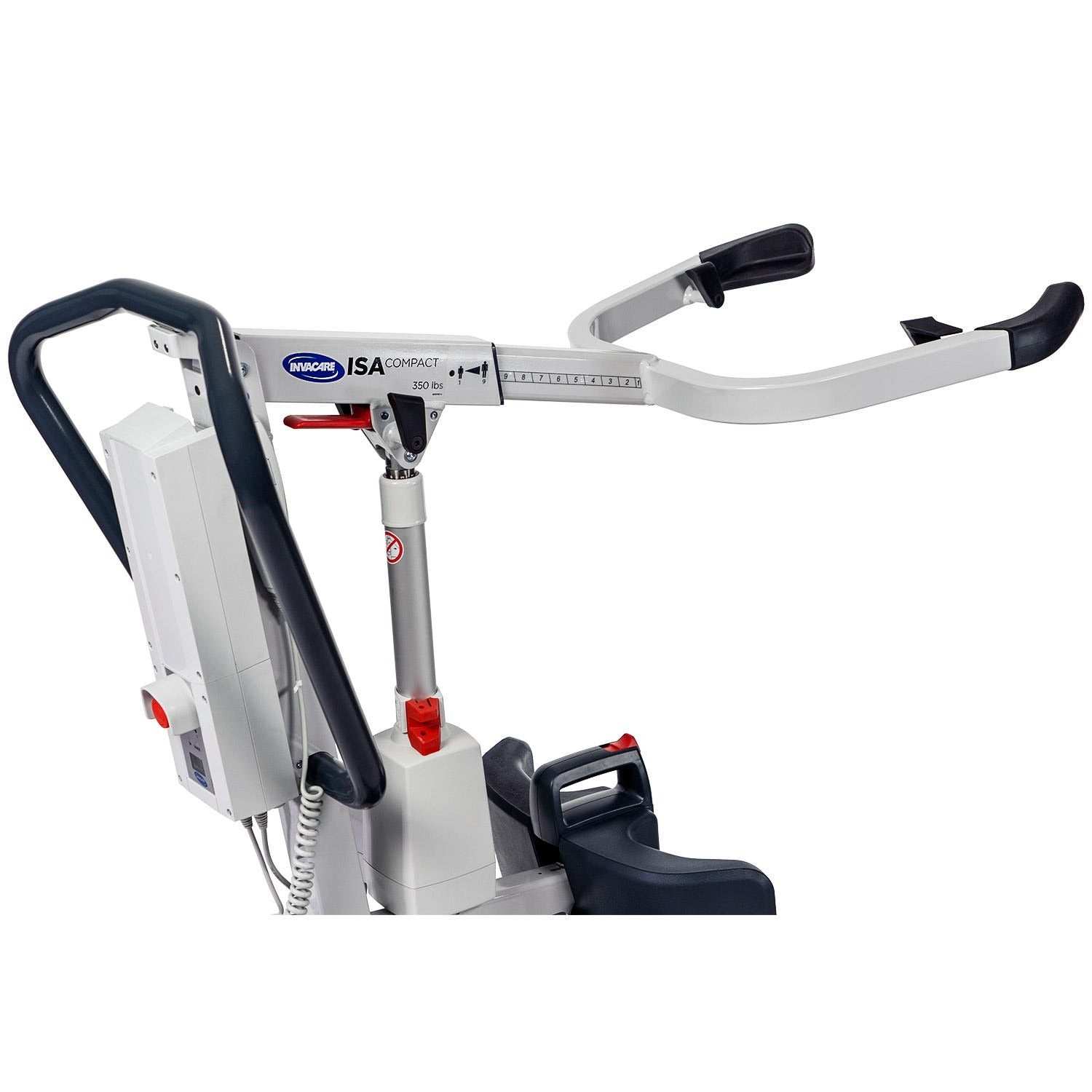

Extendable lifting arm with nine different lengths adapts to the user’s height and arm proportions

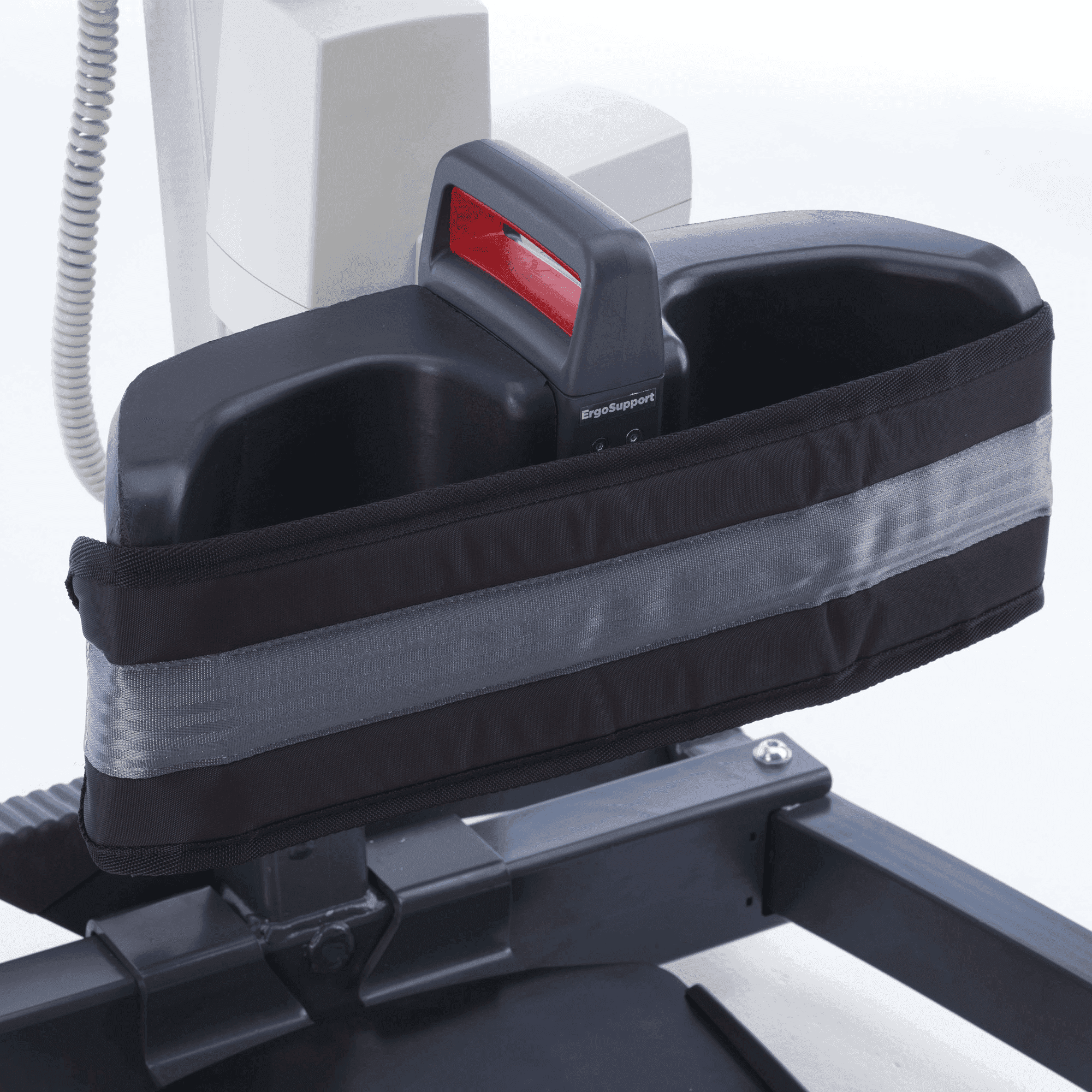

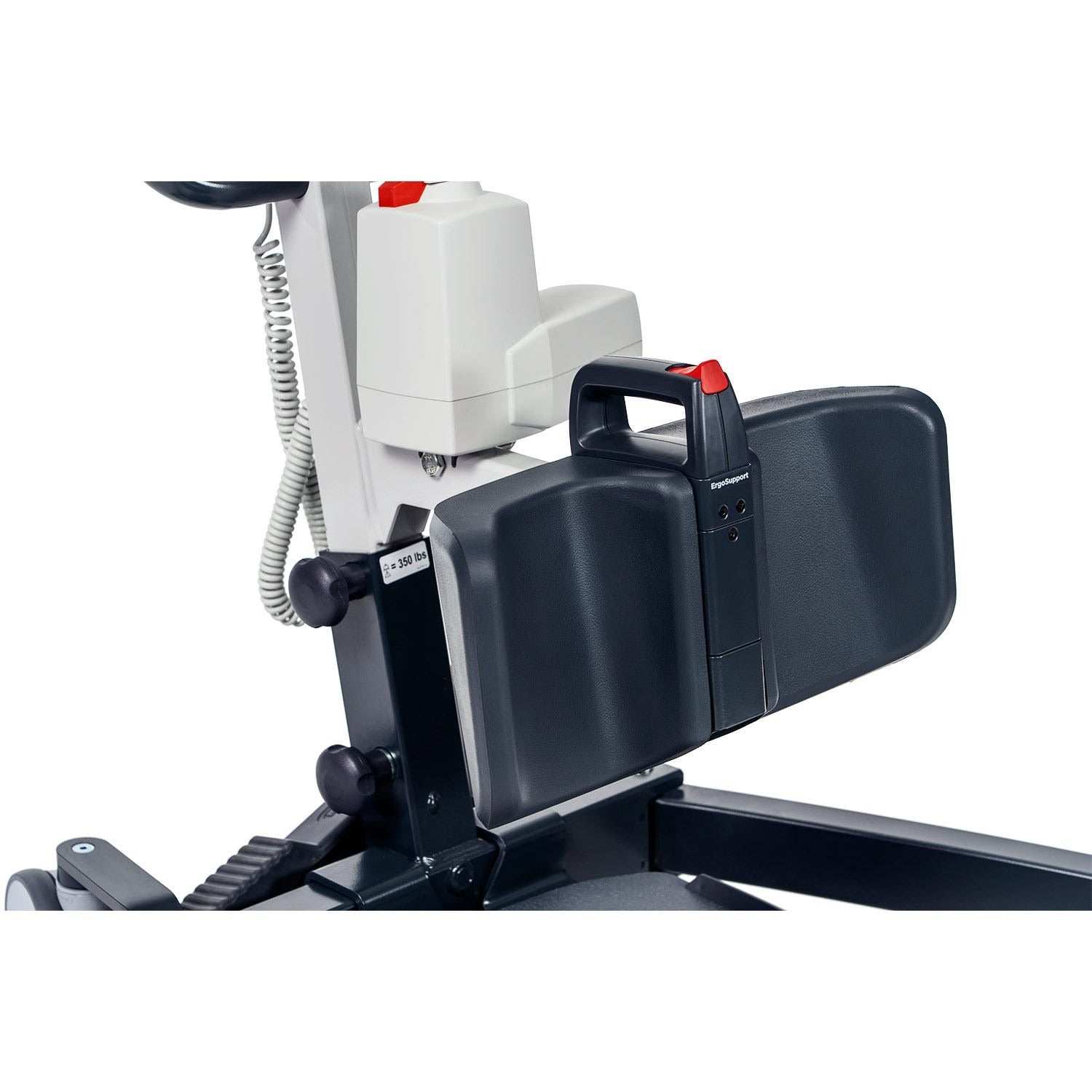

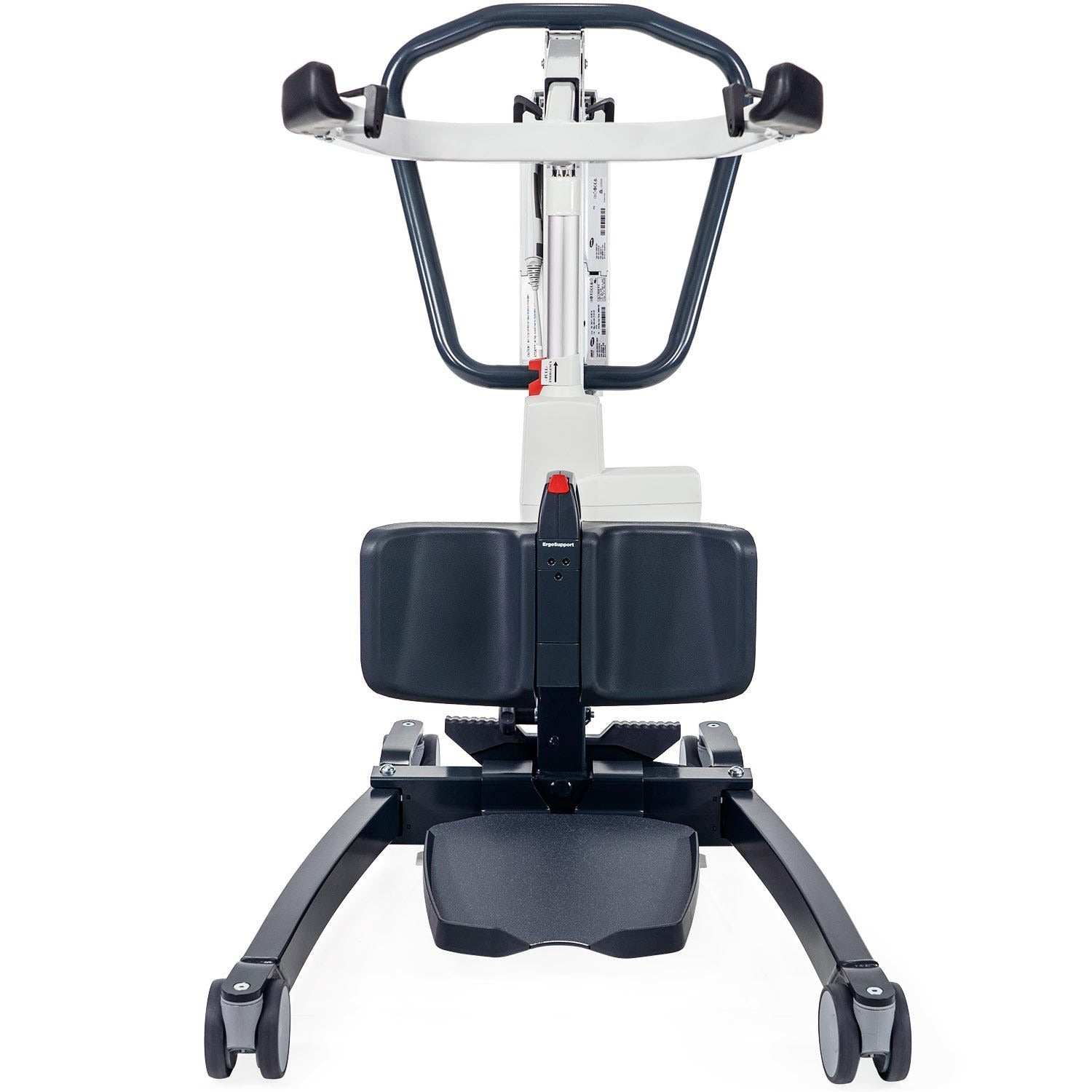

Cushioned leg supports have adjustable height settings to comfortably fit any lower leg sizes
Leg supports can be adjusted to six different positions with one hand, no tools required
Removable foot plate allows the user to stand and walk under supervision

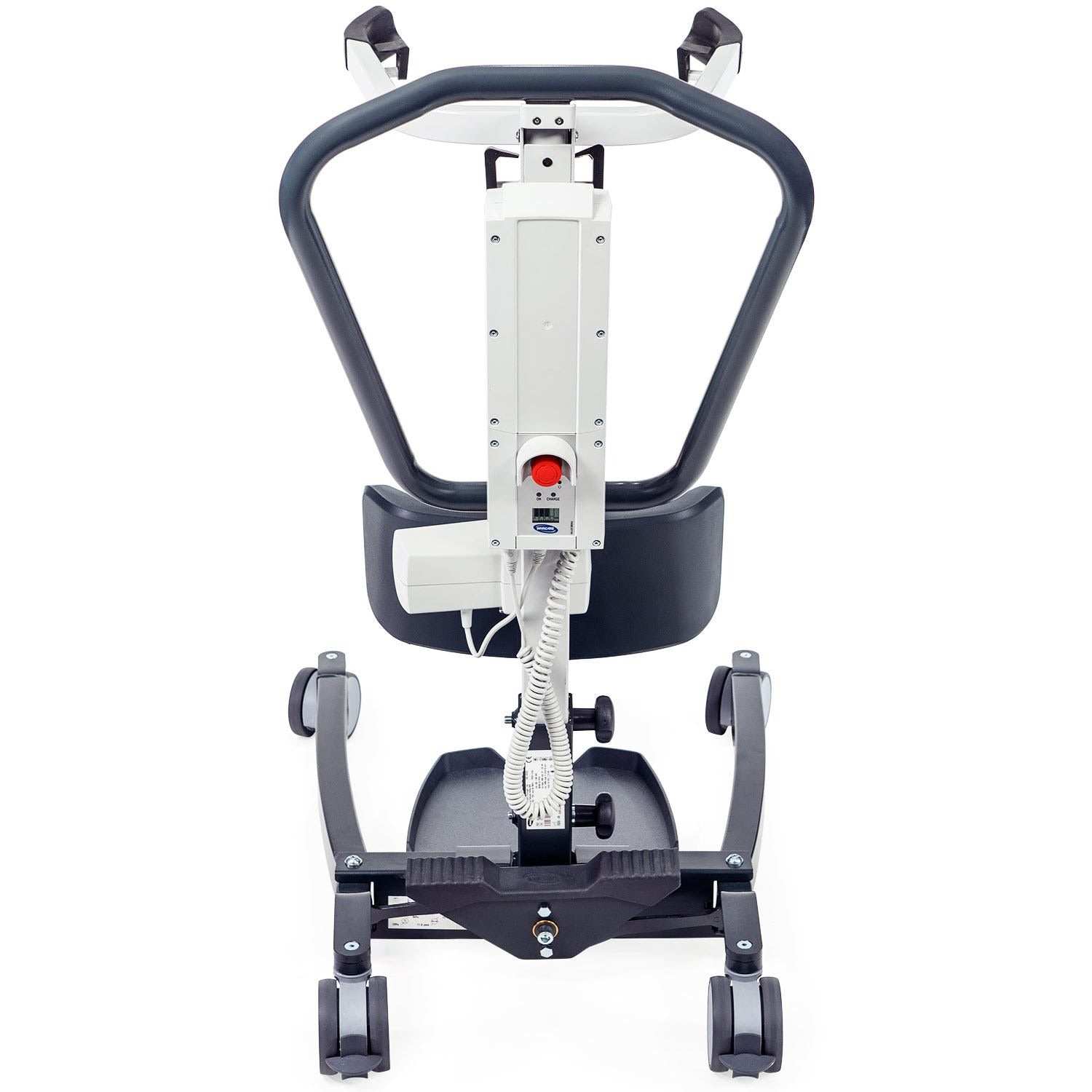

Ergonomic push bar aligns with the caregiver’s shoulders and elbows to aid in maneuvering

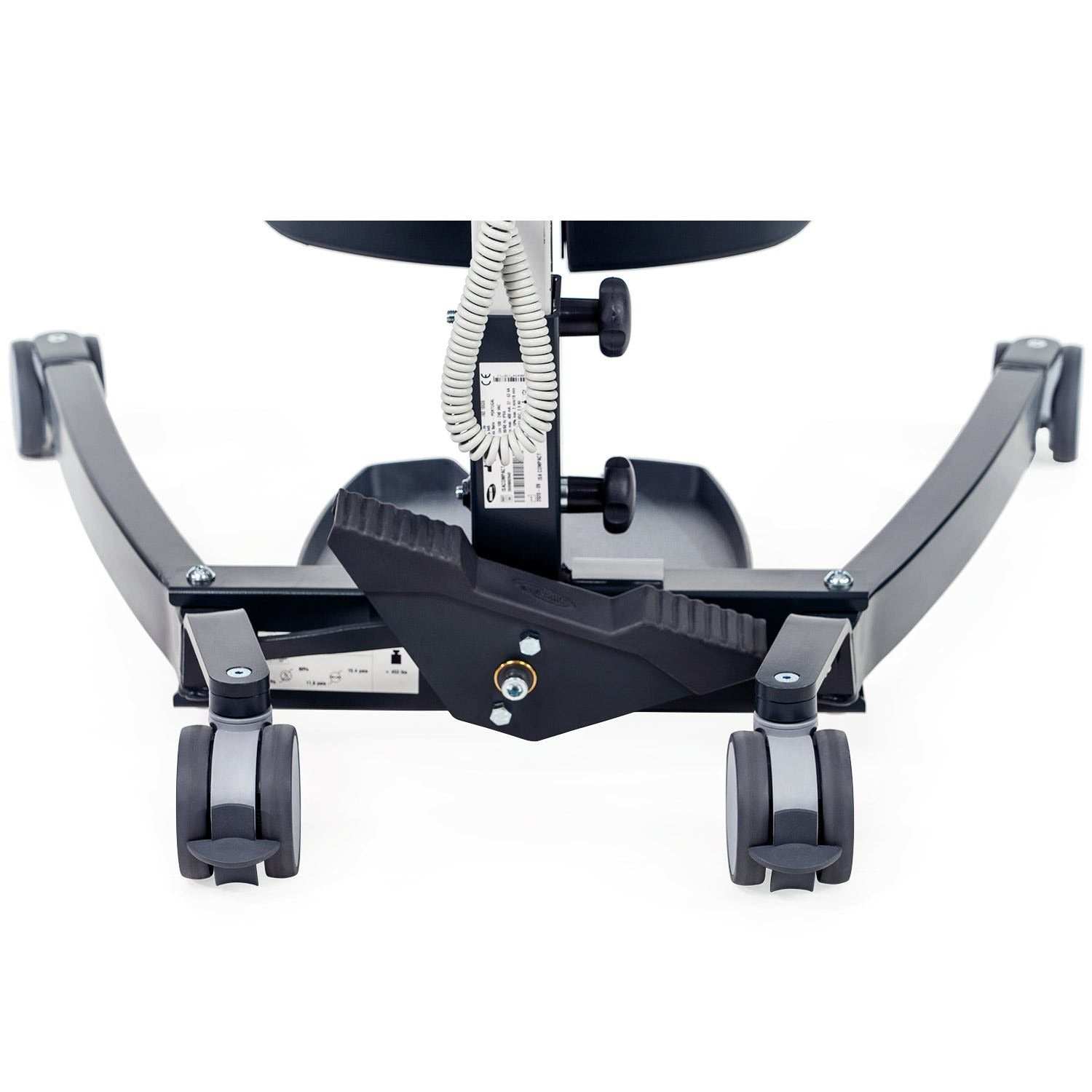

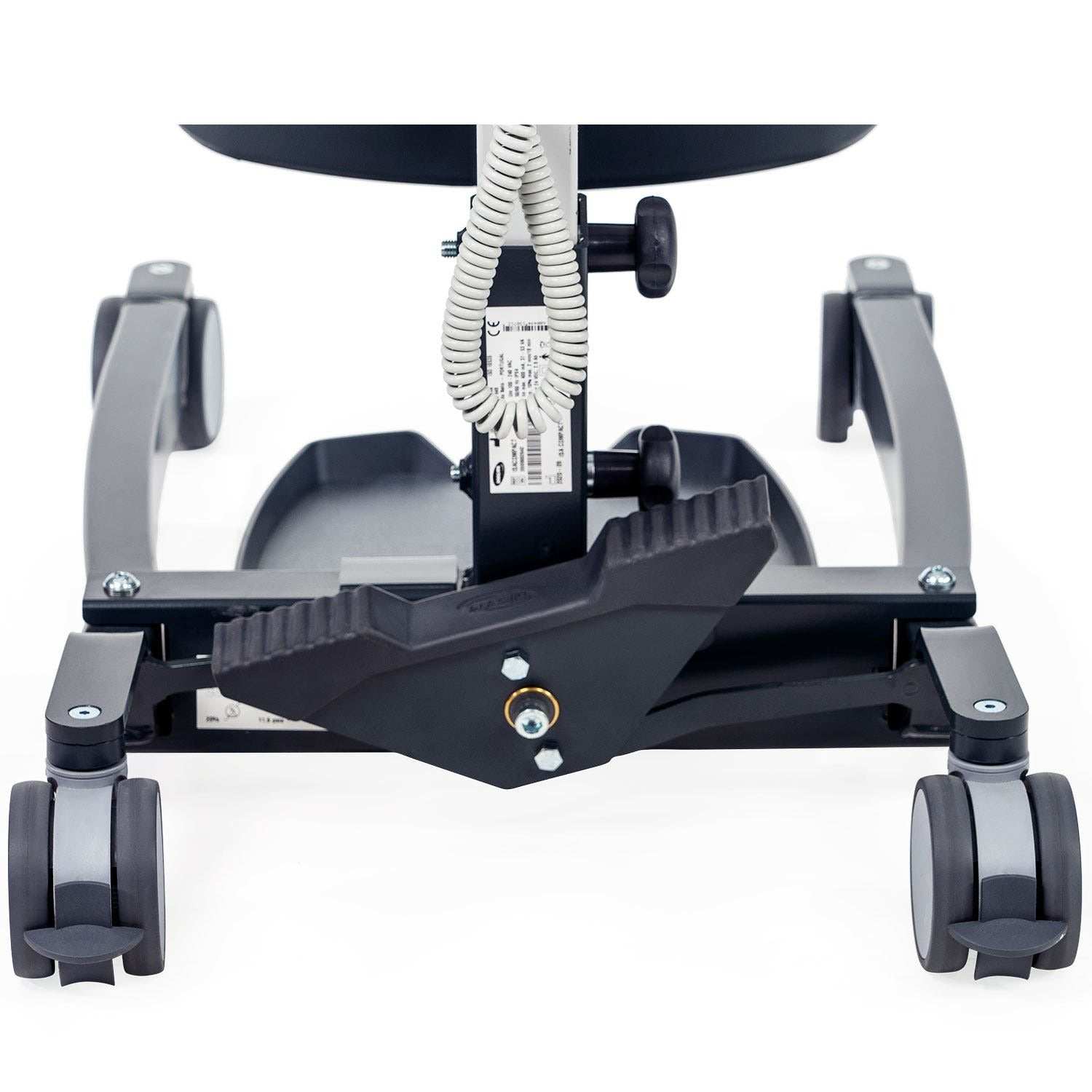

Foot pedal base operation allows adjustment with minimal caregiver effort and no upper body strain
Flexible, secure sling hooks for quick, straightforward attachment
Curved legs allow easy maneuvering around furniture and commodes

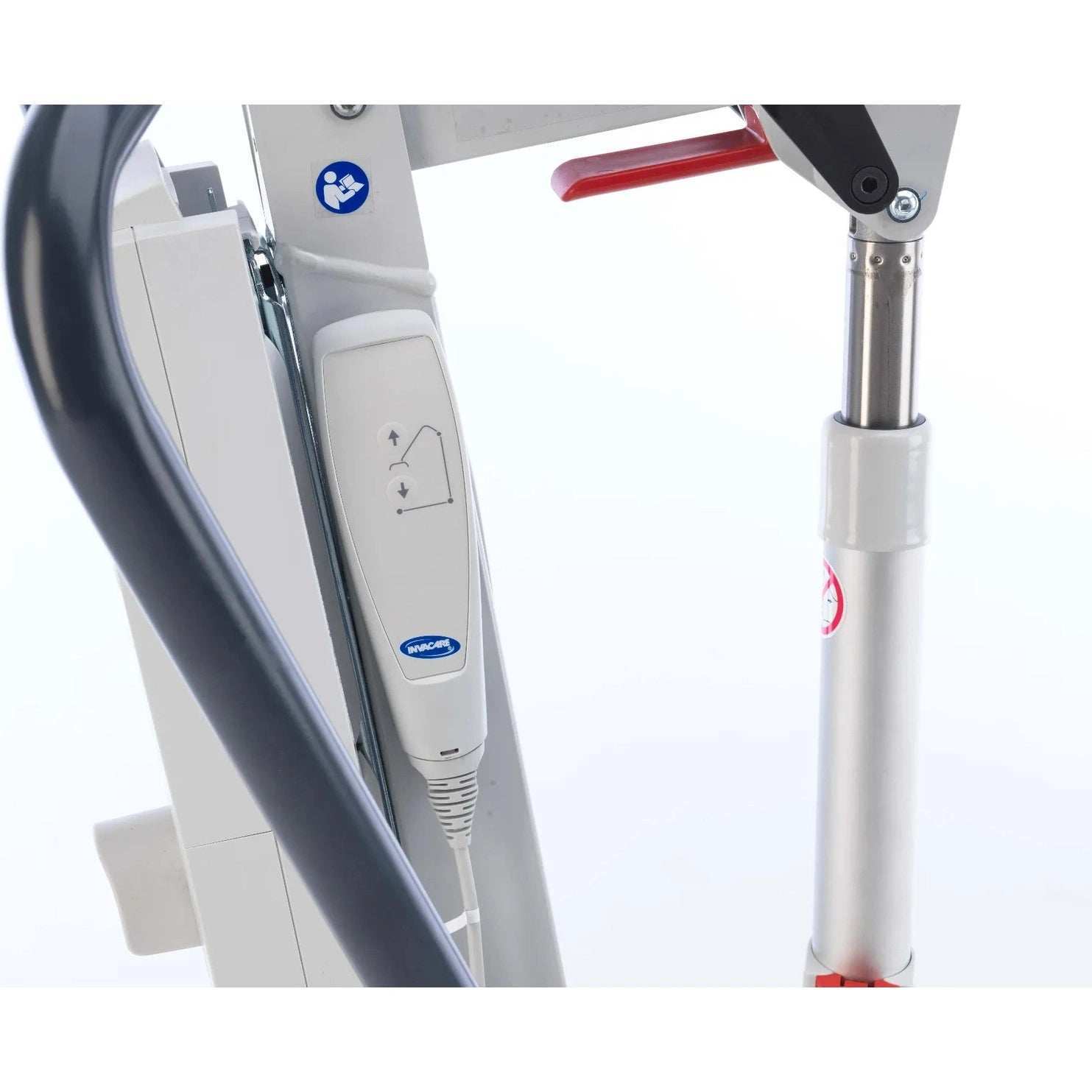

Emergency controls for Stop, Up and Down
Audible and visual battery life indicators
Includes two batteries and charger
Product Details:

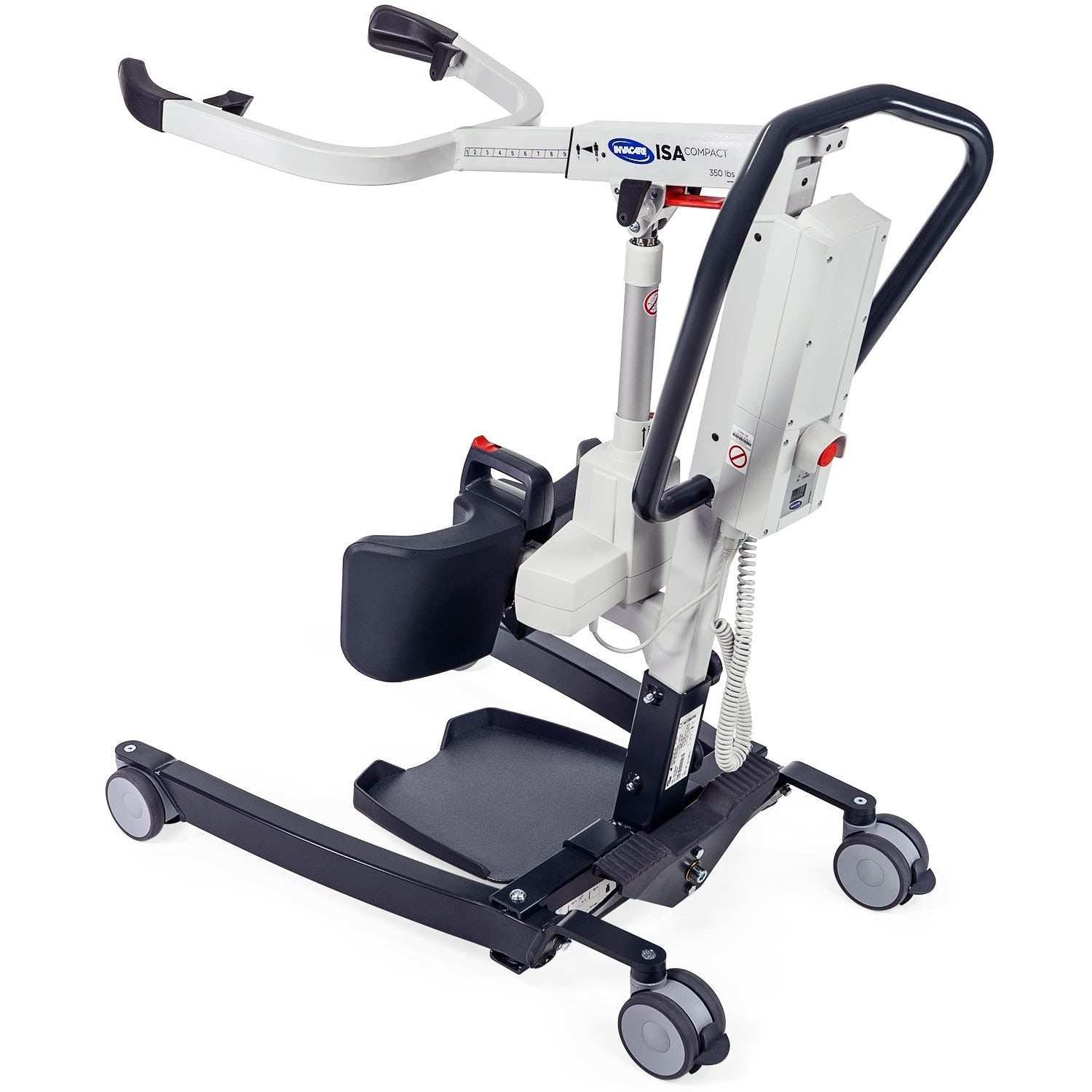

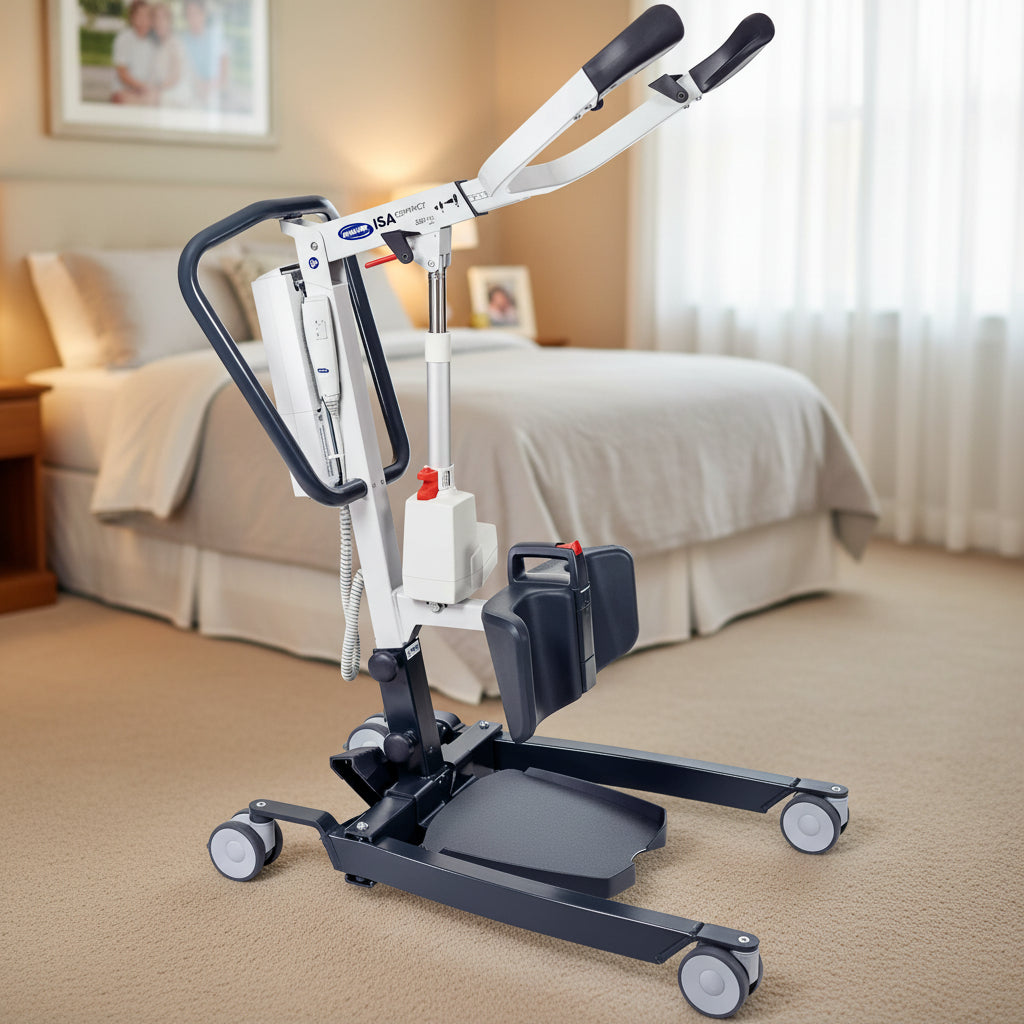

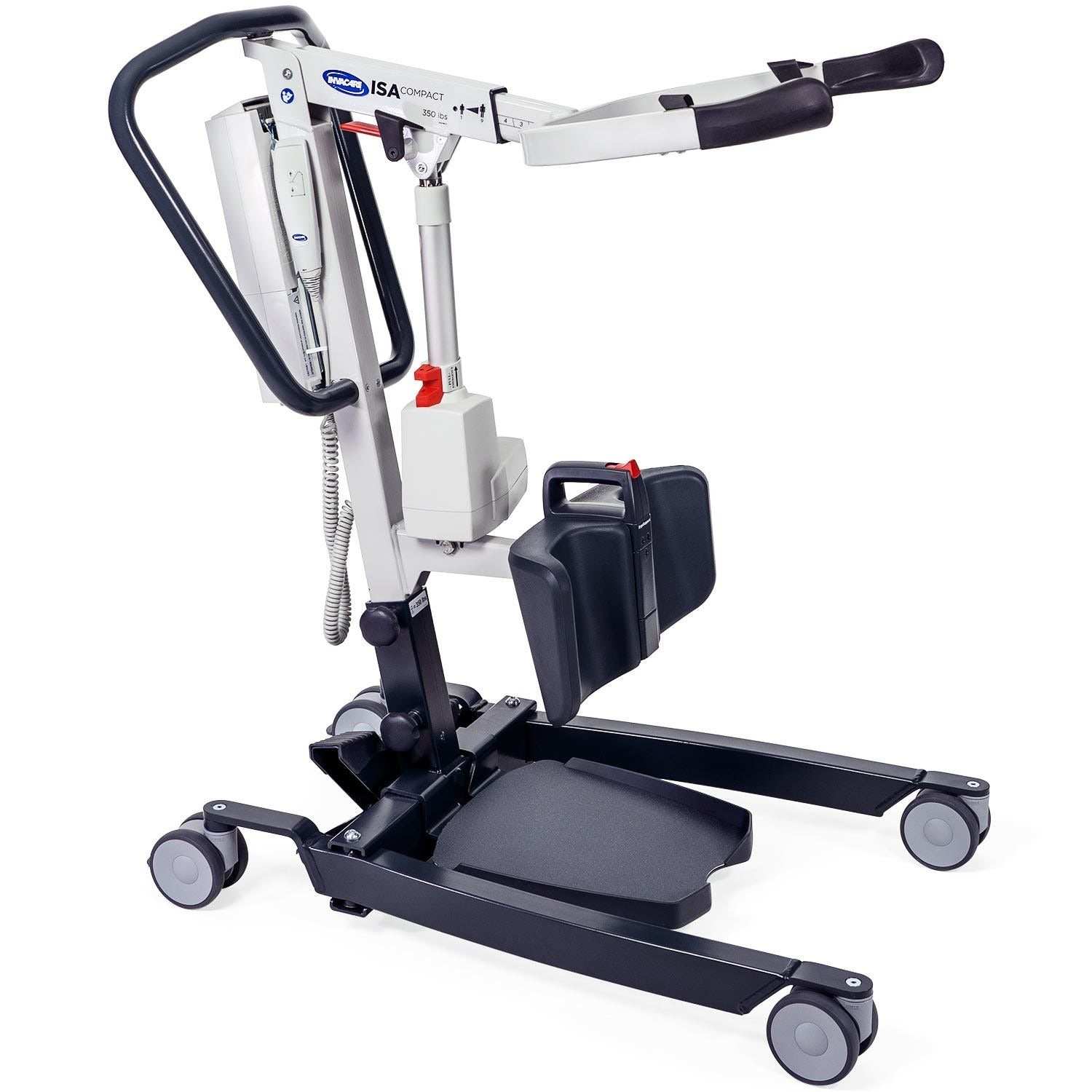

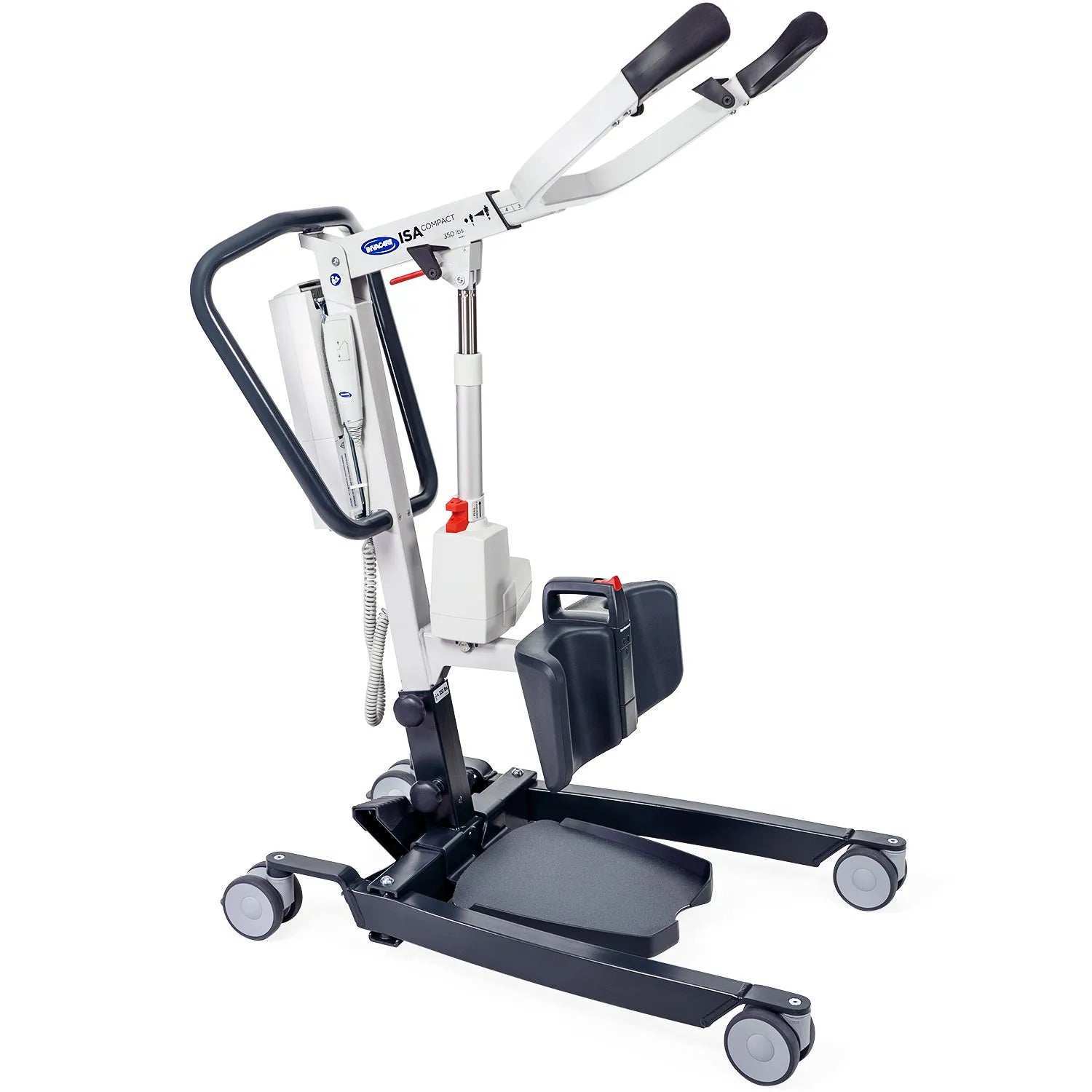

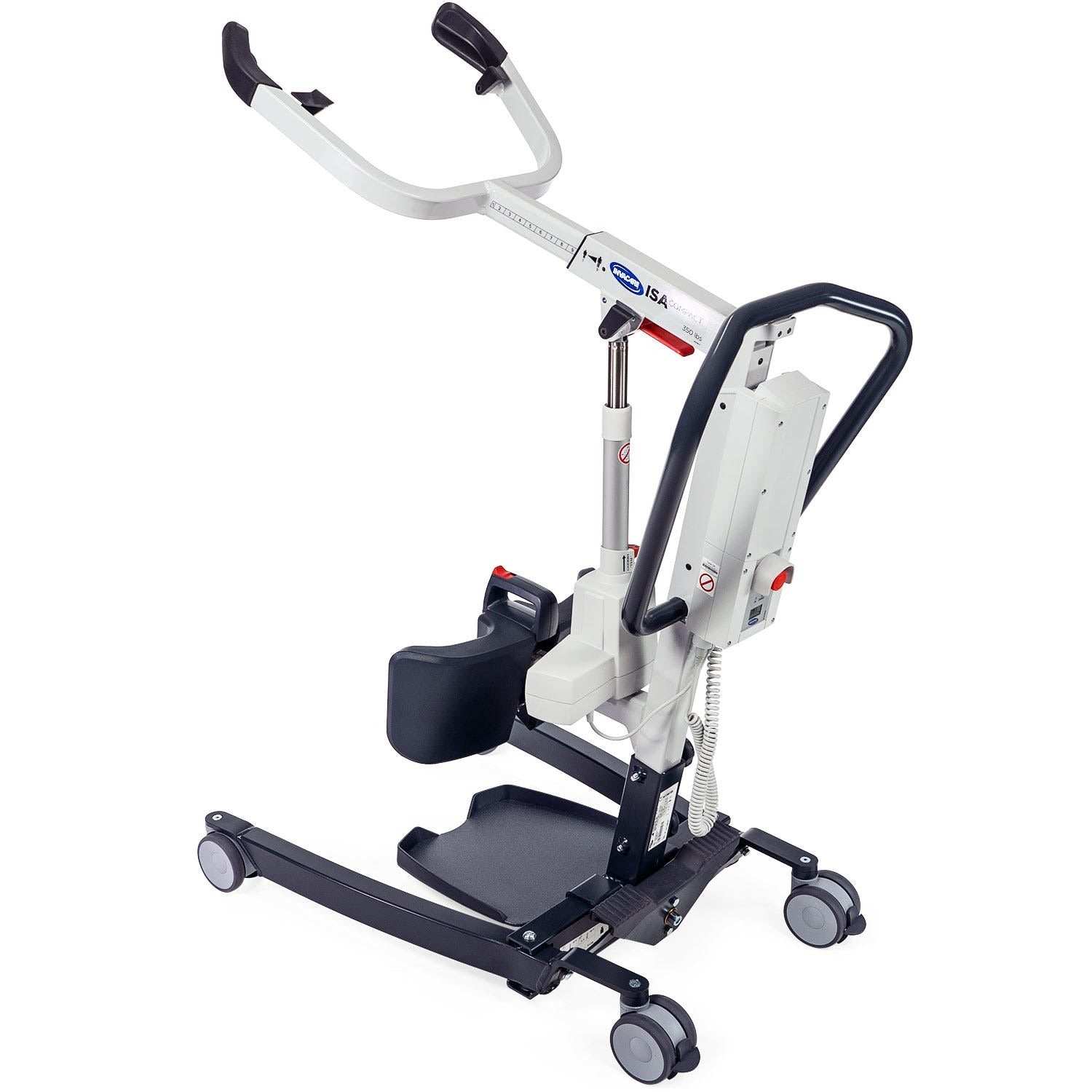

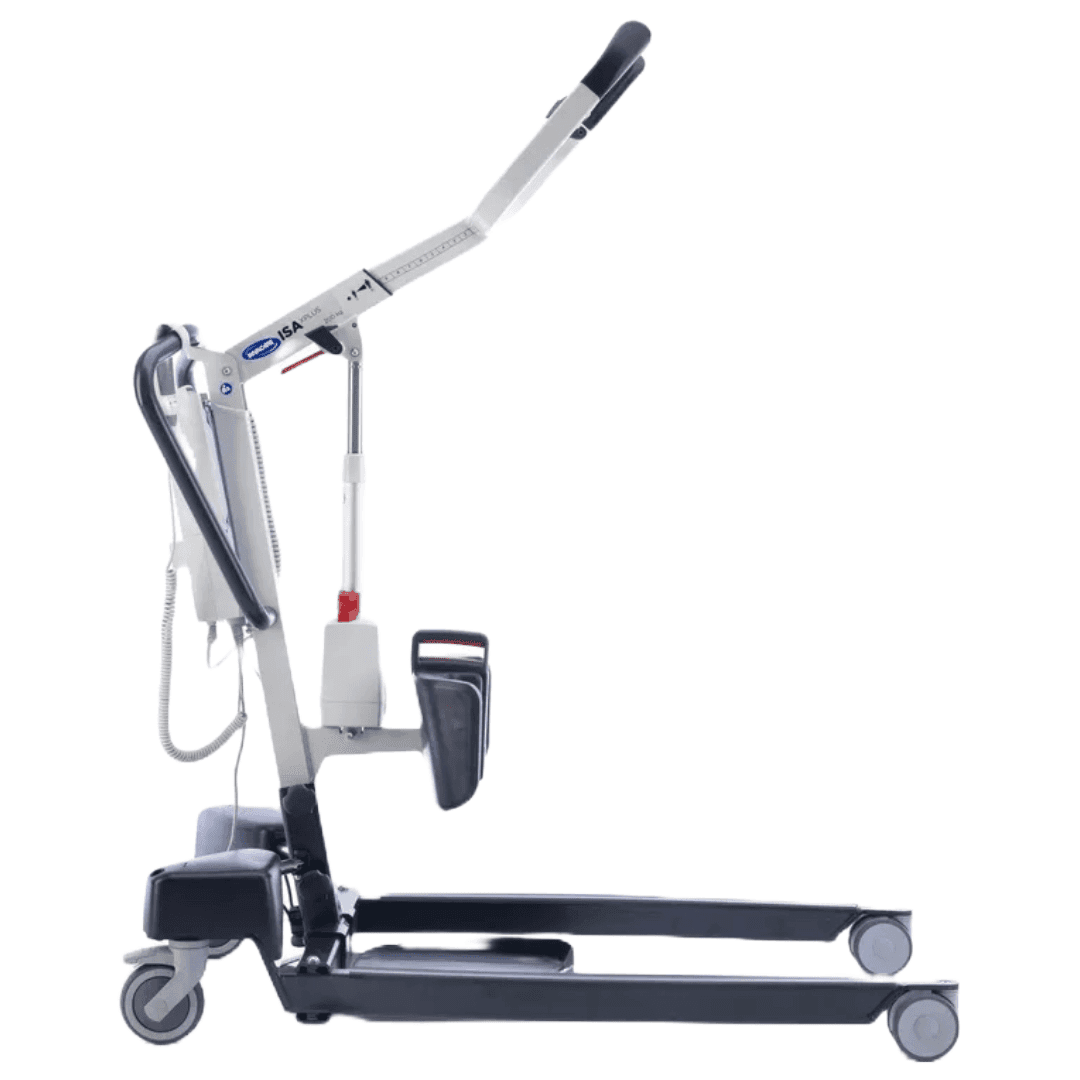

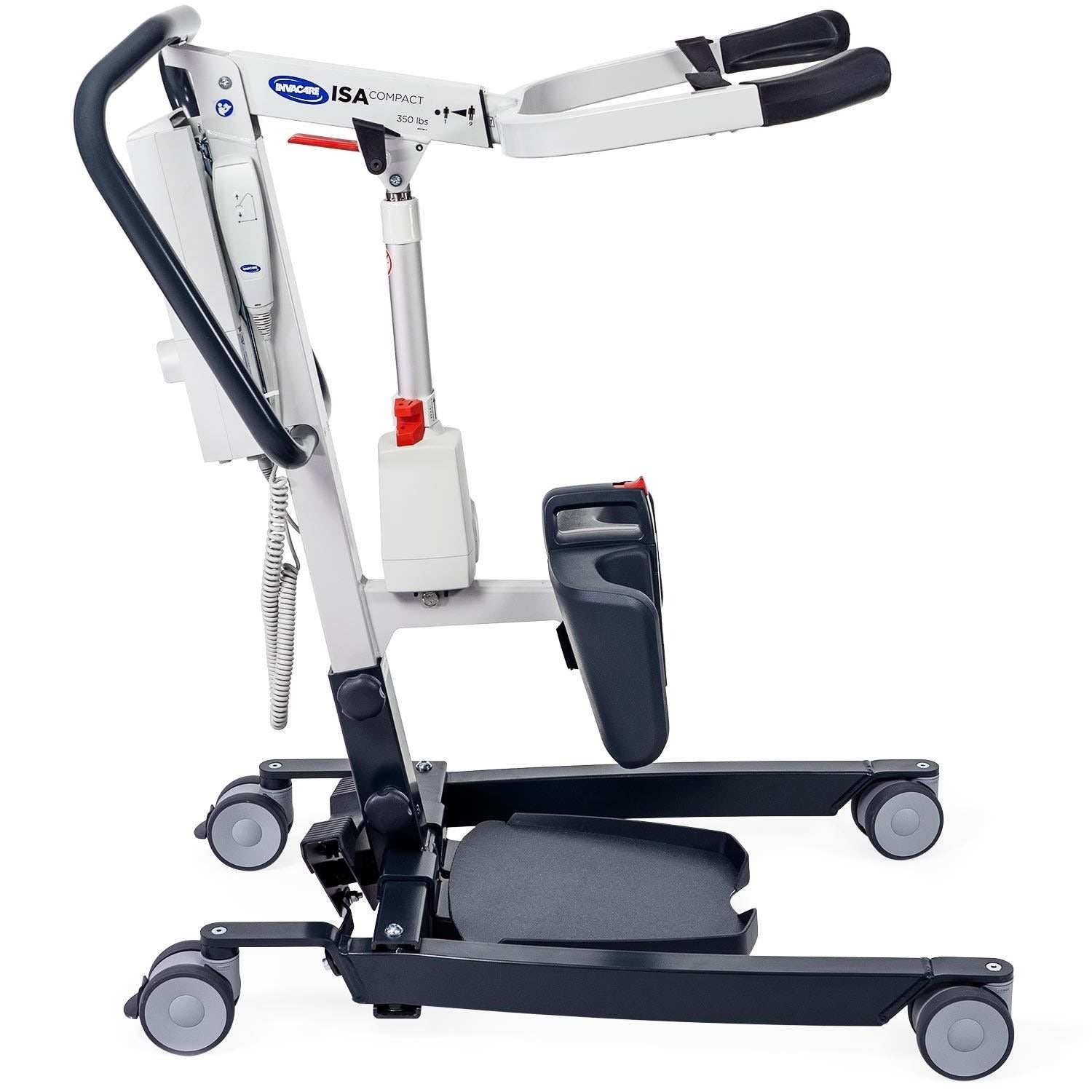

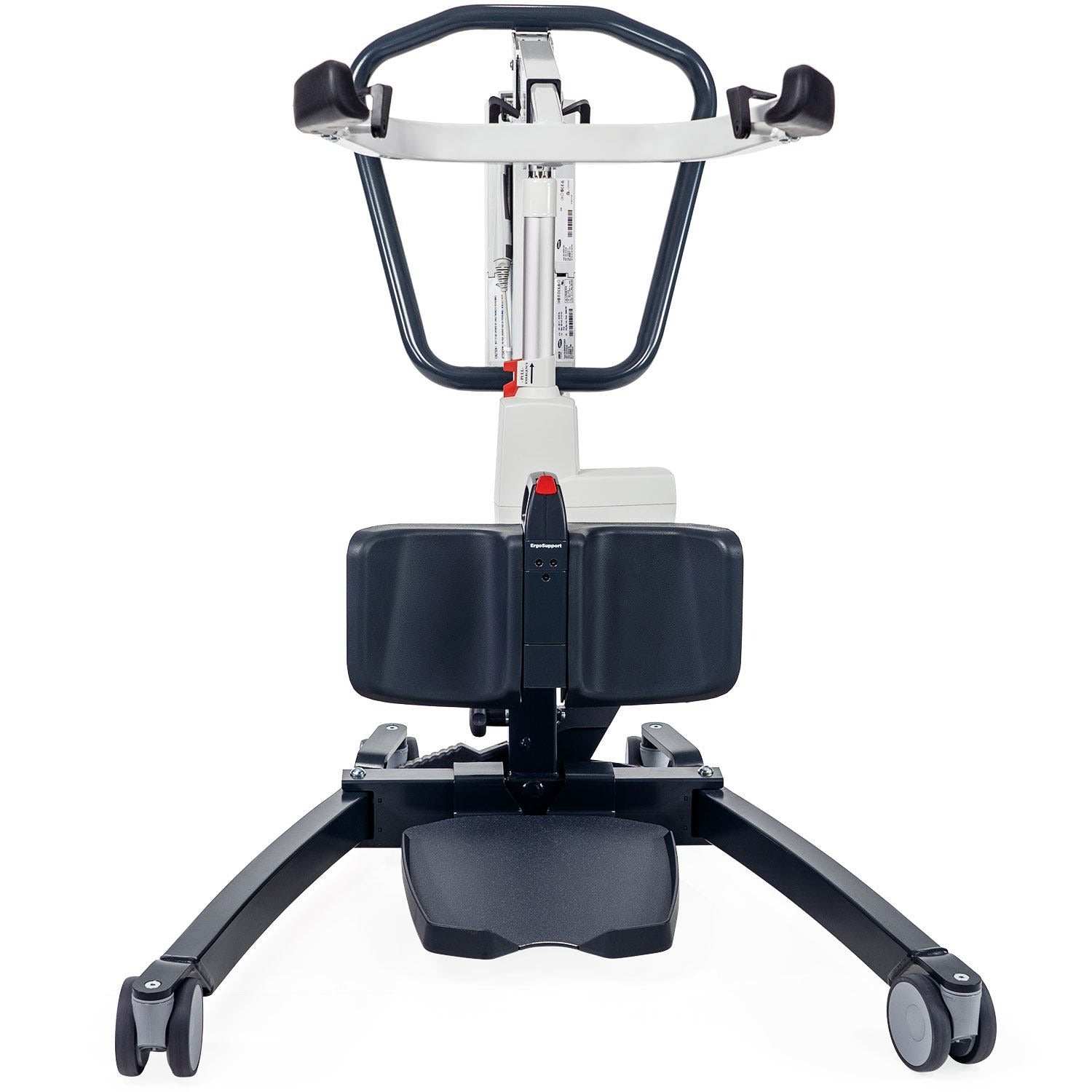

Invacare ISA Compact/ISA XPlus Stand-Up Patient Lift is designed to promote the experience of independence while relieving the lifting burden from the caregiver, with intended features to deliver ease of use, maneuverability, and versatility. Invacare Stand Assist (ISA) premier series lift comes with optimal functionality and an innovative feature set for maximum comfort and security when transferring weight-bearing residents and patients, as well as those needing rehabilitation support. Invacare ISA Compact/XPlus stand-up lift features a sleek and modern design that was driven by customer insights, with a goal of incorporating the most valued in a stand-assist lift while providing the new exclusive features to enhance the user and caregiver experience. Dismantling and assembly can be done without any tools, making equipment setup and transport easier than ever.
Invacare ISA stand-up patient lift has two base models with different load capacities, dimensions, and accessories, from simple to more advanced lifts for both home care and long-term care needs.
Brand New High Quality Equipment
Dimensions [inches]- ISACompact - ISAXPlus
• Front / rear castor diameter: 4" / 4", 4" / 5"
• Max. reach at 600 mm = 23 5/8" (a)*": 4 3/8" - 10 5/8", 4 3/8" - 10 5/8"
• Max. reach from base (b)*: 13 3/8" - 19 5/8", 13 3/8" - 19 5/8"
• Base length (c): 36 3/8", 50 3/8"
• Total length without lever (n): 36 3/8", 50 3/8"
• Total length with lever (l)*: 38 5/8" - 39 3/8", N/A
• Reach from base with legs spread to 700 mm = 27½" (d): 16½", 8 7/8"
• Max. height (f)*: 65" - 70 7/8", 65" - 70 7/8"
• Lifting range (g)*: 19 7/8" - 26 5/8", 19 7/8" - 26 5/8"
• Min. height at Sling Hook-up (hmin)*: 37¾" - 38¾", 37¾" - 38¾"
• Max. height at Sling Hook-up (hmax)*: 58 5/8" - 64 3/8", 58 5/8" - 64 3/8"
• Total width (legs open) external measure (i): 34 7/8", 46"
• Total width (legs open) internal measure (j): 29", 40 1/8"
• Total width (legs closed) external measure (r): 21, 25¼"
• Min. internal width (s): 15", 19½"
• Internal width at maximum reach (k)*: 5¼" – 28½", 30½" - 34¼"
• Turning diameter: 41¾", 56¼"
• Height to upper edge of legs (m): 4½", 4½"
• Min. free height (p): 1 3/8", 1 3/8"
• Total weight*: 95 - 99 115
• Weight mast with CBJ1 / 2 / Care incl. lead acid battery: 44, 44
• Weight manual leg section: 33, N/A
• Lever for manual leg spreader: 2, N/A
• Weight electrical leg section: N/A, 51
• Leg support: 11, 11
• Foot plate (high low and inclined): 9, 9
Electrical System
• Voltage output: 24 V DC
• Voltage supply: 100 – 240 V AC 50/60 Hz
• Maximum current input: 400 mA
• Protection class (entire device): IPX4 - The system is protected against water splashed from any direction.
• Insulation class: Class II equipment
• Type B Applied Part: Applied part complying with the specified requirements for protection against electrical shock according to IEC60601-1.
• Sound level: 45 – 50 dB(A)
• Working ability: 82 full lifts (with battery between 100% – 50% of full capacity)
• Intermittent (periodic motor operation): 10% max. 2 min / 18 min
• Battery specification: 2 x 12 V / 2.9 Ah
• Battery type: Lead acid (service free sealed)
• Manual emergency lowering : Yes (at bottom of actuator)
• Electric emergency lowering / lifting : Yes / No, Yes / Yes
• Power Consumption: while charging: max. 19 W & in standby: max. 2.5 W
• Lifting Speed - without load*: 1½ - 2 in/s
• Lifting Speed - with 176 lbs person*: 1 3/8 - 1¾ in/s
Note: *Range depending on configuration & fully shortened to fully extended position of lifting arm
Warranty Limited
2 year electronics
5 year frame
Parts & Accessories
6 months limited warranty
