Key Features:

• Constructed of 1" steel
• Easy to install
• Weight: 27 lbs.

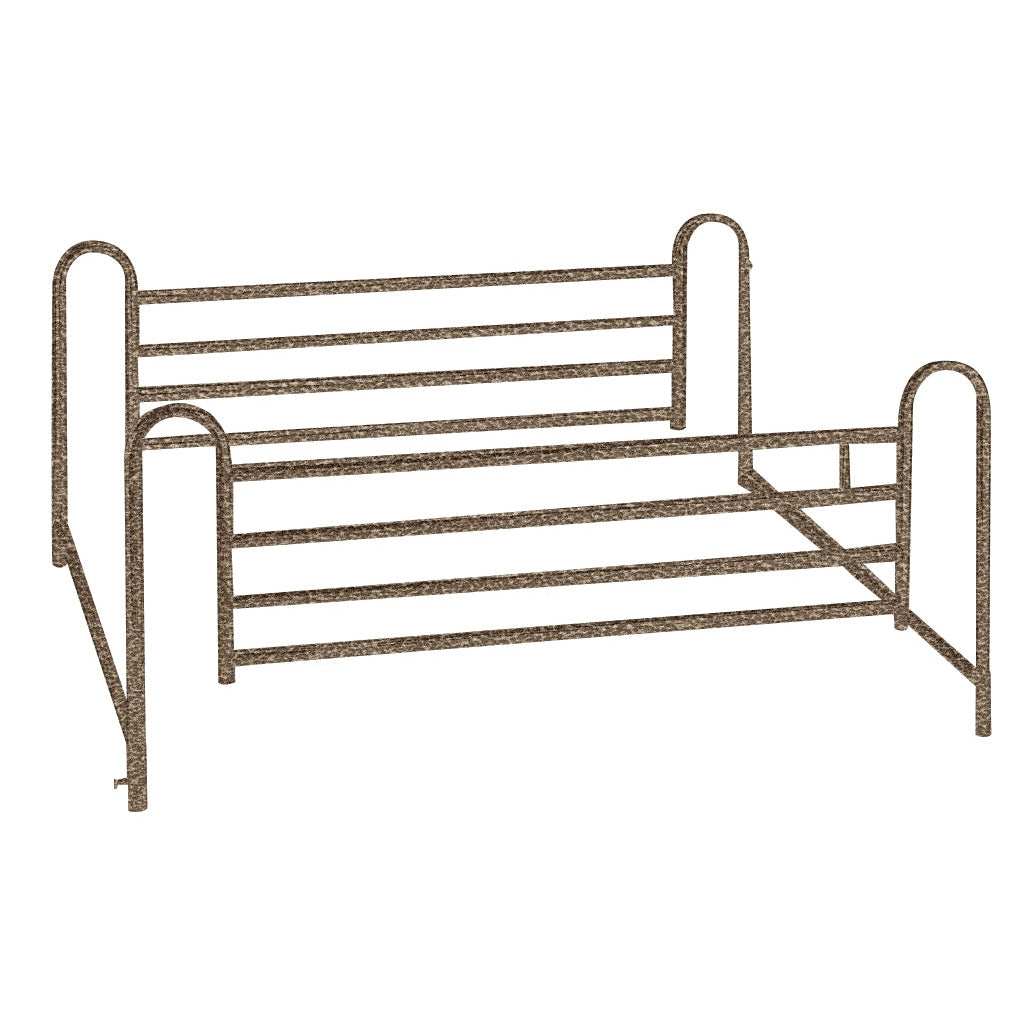

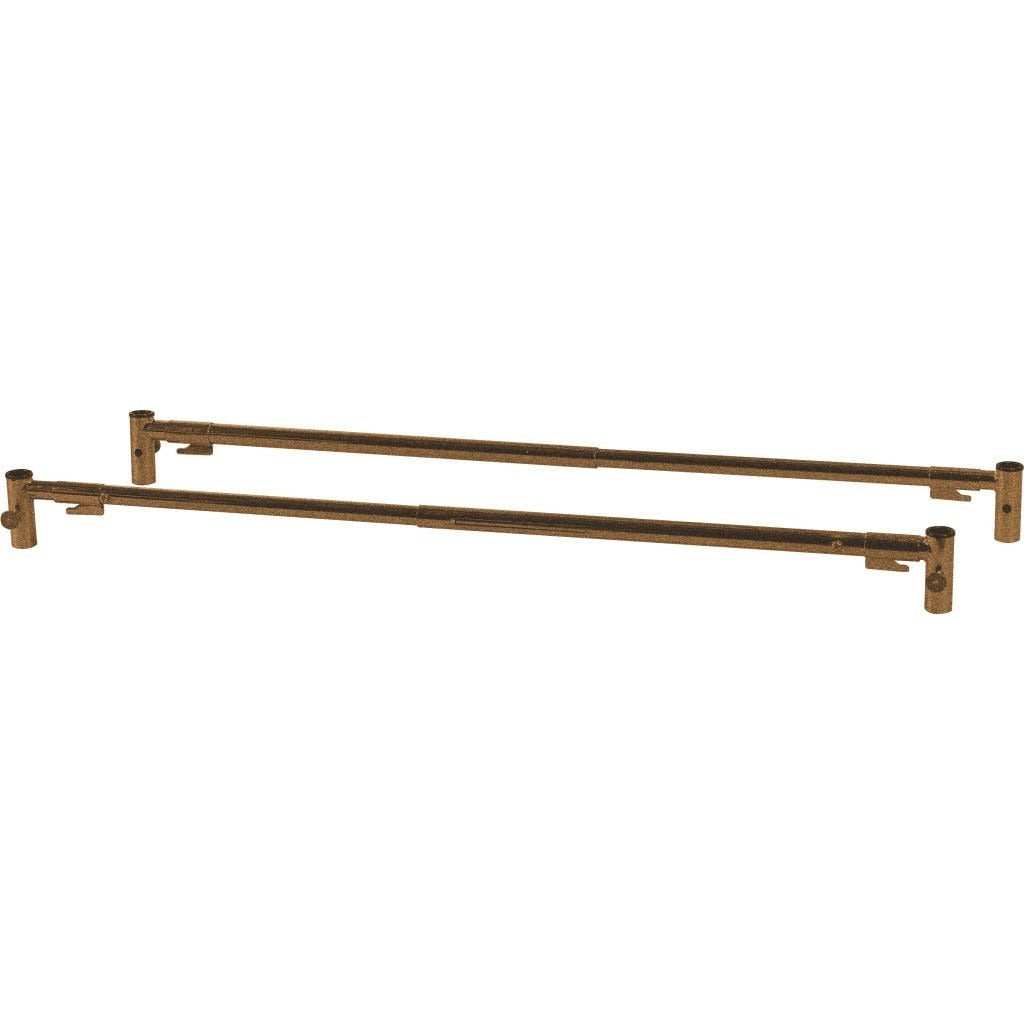

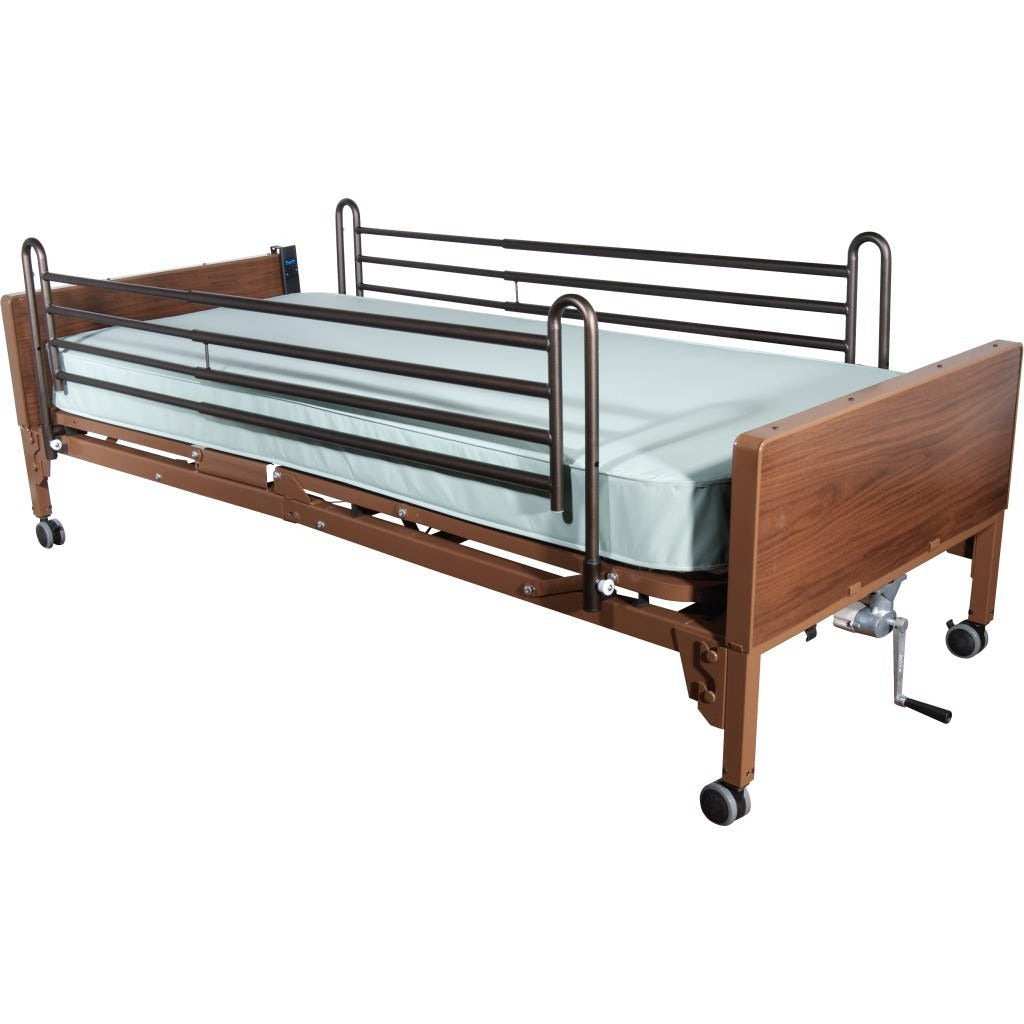

These deluxe full length side rails for hospital beds by Drive Medical telescopes with movement of the bed to provide adequate support. The 1" steel construction with brown vein finish is both strong and attractive. The rails adjust up or down thanks to spring-loaded release. The spring-loaded crossbars offer extra support, and come easy to install or easy to remove.  The cross bars are easy to install and requires no tools.

Product Highlights:

• Attractive brown-vein finish
• Telescopes with movement of bed
• Easy to install on bed
• Easily adjusts up or down with spring-loaded release
• Spring-loaded crossbars are easy to install and remove
• Telescopes with movement of bed for better protection
• Great for taller patients because of its telescoping feature
• Universal cross bars come standard; Can be used with most manufacturers bed rails
• Fits most 36" hospital and homecare beds with steel frame
• Not for use with "pan-style" flat bed surfaces that do not include mattresses

Brand New High Quality Equipment

Actual Product Weight: 27 lbs
Overall Product Height: 3"
Overall Product Length: 44.5"
Overall Product Width: 20.25"
Tube Diameter: 1"
Height Adjustment : 15" – 20"
Expanding Length : 45" to 72"
Primary Product Color: Brown
Primary Product Material: Steel


Instructions for Telescoping Full Length Side Rails for Beds

Make sure the crossbraces are 45 to 72 inched apart.
1. Extended one bed rail to reach the head and foot-end crossbraces.
WARNING: The outer Telescoping tube of the bed rail must be positioned at the Head-end of the bed to
prevent a pinch point when raising/ lowering the bed.
2. Insert the outer telescoping rail into the barrel of the Head-end crossbrace.
3. Pull and hold the spring loaded knob on the Head-end barrel
4. Adjust the bed rail to one of the three positions.
5. Release the spring loaded knob on the Head-end barrel.
6. Raise or lower the bed rail until the spring loaded knob “clicks” securely into the lower or upper adjustment hole or until the rail stop securely rests against the barrel.
7. Insert the INNER telescoping rail into the barrel of the FOOT-END cross brace.
8. Pull and hold the spring loaded knob on the FOOT-END barrel.
9. Adjust bed rail to the position determined in STEP 4.
10. Release the spring loaded knob on the FOOT-END barrel.
11. Raise or lower the rail until the spring loaded knob “clicks” securely into the lower or upper adjustment hole or until the rail stop securely rests against the barrel.
12. Repeat STEPS 1-11 to install the other bed rail onto the opposite side of the bed.

Warranty: Limited Lifetime
